SNMG 856-NRM:T7335
SNMG 856-NRM:T7335
SNMG 856-NRM:T7335
SNMG 856-NRM:T7335

SNMG 856-NRM:T7335

UGC DOR7273546
par Dormer Pramet
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$64.29 CAD - $64.29 CAD
$64.29 CAD
$64.29 CAD - $64.29 CAD
$64.29 CAD

Vendu en lots de : 10

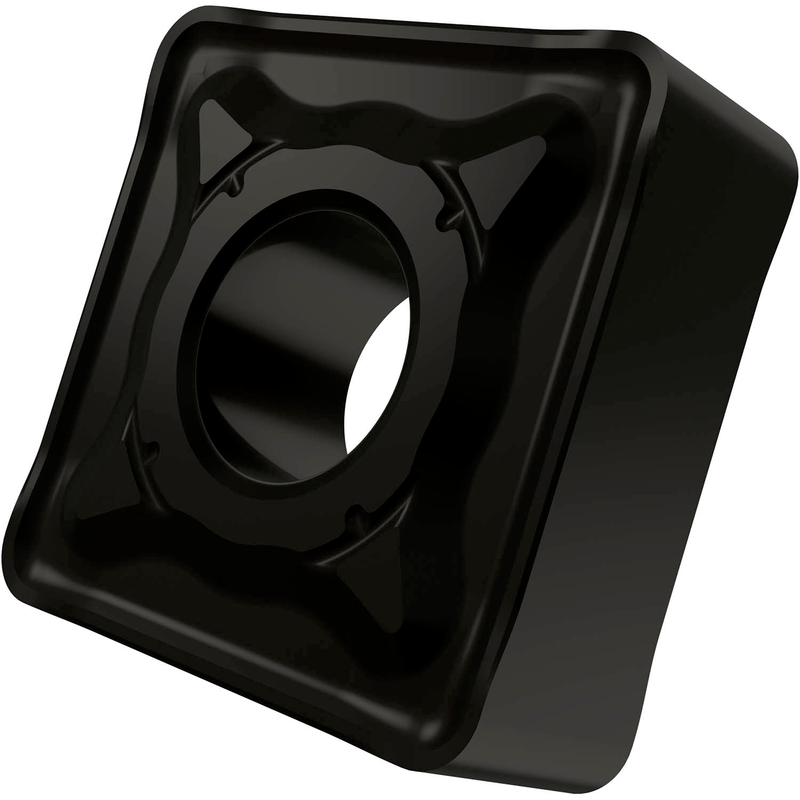

Plaquette de tournage négative double-face, carrée avec un diamètre de cercle inscrit de 1", 5/16" d'épaisseur, un rayon de bec de 3/32" et une précision de positionnement selon la classe de tolérance ISO M, brise-copeaux NRM, en nuance T7335, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD, dans la plage ISO M20-M40, pour l'usinage moyen à lourd des aciers inoxydables

For more information about this product, click here

Identification
Ordering Code (ANSI)SNMG 856-NRM:T7335
Product Name (ISO)SNMG 250724-NRM:T7335
GradeT7335
Chipbreaker (CBMD)MRN
Product Number7273546
Product FamilyGroupe maritime permanent de l'OTAN
Insert Geometry
Insert DesignGNHM
Insert Shape Code (SC)C - carré
Insert Geometry
Inscribed Circle Dia. — in (IC)1.0"
Inscribed Circle Dia. — mm (IC)25.4 mm
Insert Thickness — in (S)0.313"
Insert Thickness — mm (S)7.94 mm
Corner Radius — in (RE)0.094"
Corner Radius — mm (RE)2.4 mm
Depth of Cut Max — in (APMX)0.551"
Depth of Cut Max — mm (APMX)14.0 mm
Tool Information
Reference Numbers
EDP Number7273546
EAN3603603241459
File Type Download
SNMG 856-NRM:T7335 — Line Drawing PDF Download
