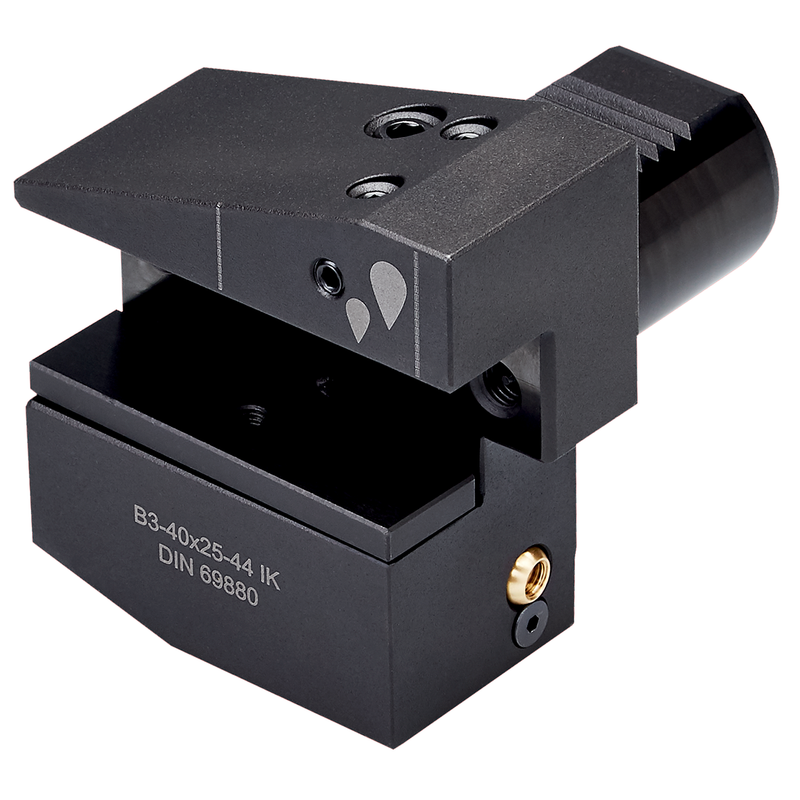

VDI.40-B3.25.44.C
VDI.40-B3.25.44.C
VDI.40-B3.25.44.C
VDI.40-B3.25.44.C

VDI.40-B3.25.44.C

UGC DOR8259703
par Dormer Pramet
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$278.00 CAD - $278.00 CAD
$278.00 CAD
$278.00 CAD - $278.00 CAD
$278.00 CAD

Vendu en lots de : 1

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)VDI.40-B3.25.44.C
Product Number8259703
Product FamilyVDI-B3-C

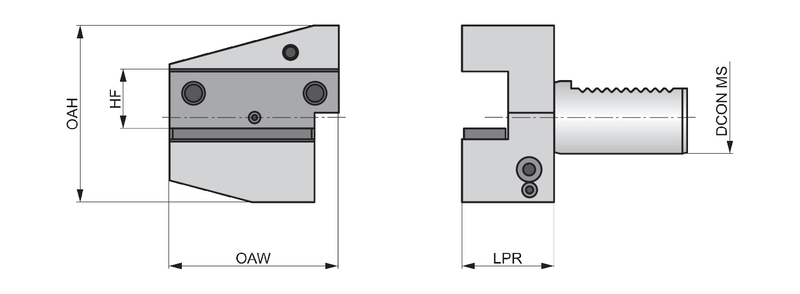

Dimensions
Functional Length — in (LF)0.866"
Functional Length — mm (LF)22.0 mm
Connection Dia. — in (DCON)1.575"
Connection Dia. — mm (DCON)40.0 mm
Tool Information
Through Coolant No
Reference Numbers
EDP Number8259703
EAN3603604032773
File Type Download
VDI.40-B3.25.44.C — 3D Model STP Download
VDI.40-B3.25.44.C — 2D Model DXF Download
VDI.40-B3.25.44.C — Line Drawing PDF Download
