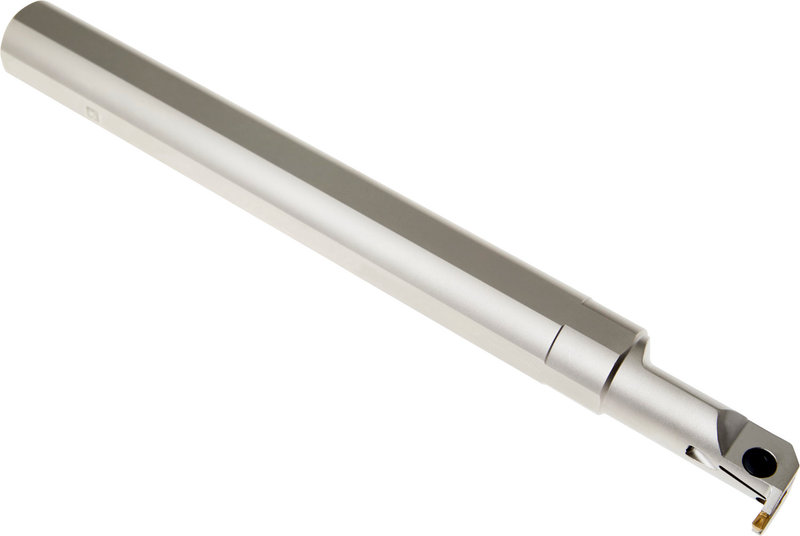

A10Q-GGEL 0313
A10Q-GGEL 0313
A10Q-GGEL 0313
A10Q-GGEL 0313

A10Q-GGEL 0313

UGC DOR8589967
par Dormer Pramet
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$281.00 CAD - $281.00 CAD
$281.00 CAD
$281.00 CAD - $281.00 CAD
$281.00 CAD

Vendu en lots de : 1

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A10Q-GGEL 0313
Product Number8589967
Product FamilyGG.(RL) INT
Dimensions
Functional Length — in (LF)7.0"
Functional Length — mm (LF)178.0 mm
Connection Dia. — in (DCON)0.625"
Connection Dia. — mm (DCON)16.0 mm
Shank Height — mm (H)15.0 mm
Min. Bore Dia. — in (DMIN)0.6299"
Tool Information
Direction of ToolGauche
Through Coolant Yes
Reference Numbers
EDP Number8589967
EAN3603604284226
File Type Download

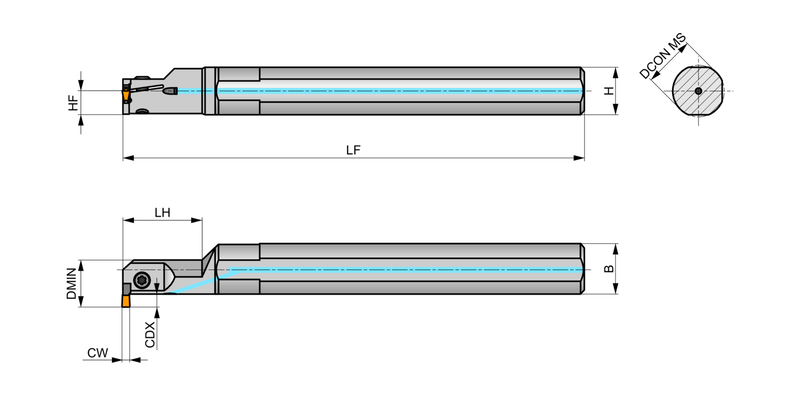

A10Q-GGEL 0313 — Line Drawing PDF Download
