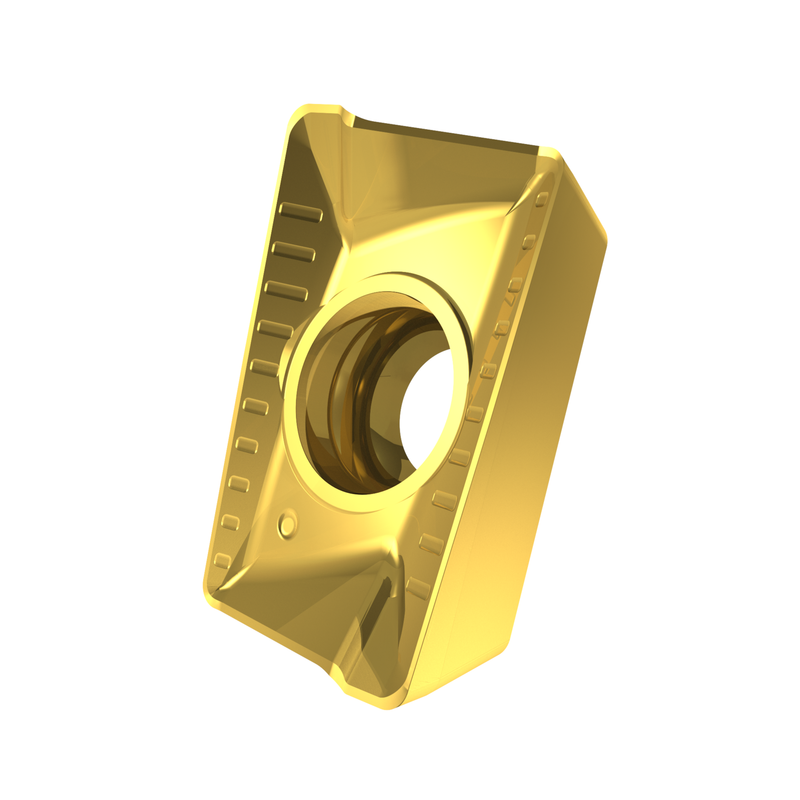

APKT 1003PDER-M:M8130
APKT 1003PDER-M:M8130
APKT 1003PDER-M:M8130
APKT 1003PDER-M:M8130

APKT 1003PDER-M:M8130

UGC DOR8754524
par Dormer Pramet
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$19.43 CAD - $19.43 CAD
$19.43 CAD
$19.43 CAD - $19.43 CAD
$19.43 CAD

Vendu en lots de : 10

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)APKT 1003PDER-M:M8130
Product Number8754524
Product FamilyAPKT 10
Insert Geometry
Insert DesignPAQT
Insert Shape Code (SC)A - parallélogramme angle interne de 85°
Insert Thickness — in (S)0.138"
Insert Thickness — mm (S)3.5 mm
Corner Radius — in (RE)0.02"
Corner Radius — mm (RE)0.5 mm
Depth of Cut Max — in (APMX)0.354"
Depth of Cut Max — mm (APMX)9.0 mm
Tool Information
Reference Numbers
EDP Number8754524
EAN3603604521079
File Type Download

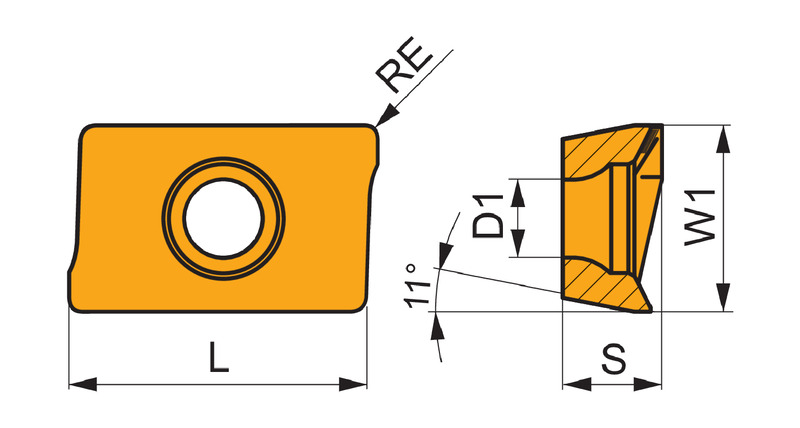

APKT 1003PDER-M:M8130 — Line Drawing PDF Download
