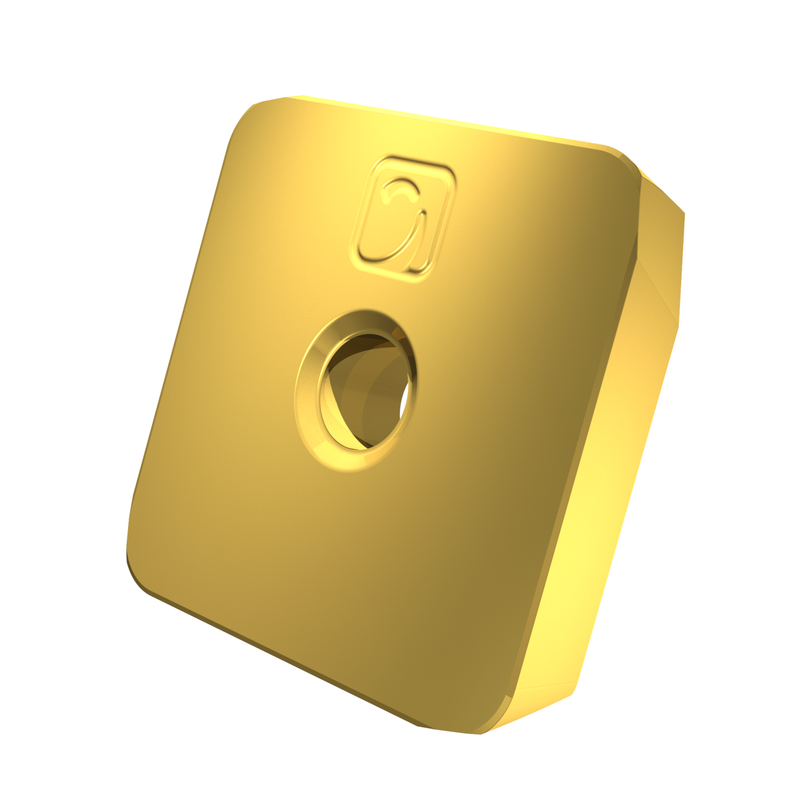

SPKN 42EDSR:M8130
SPKN 42EDSR:M8130
SPKN 42EDSR:M8130
SPKN 42EDSR:M8130

SPKN 42EDSR:M8130

UGC DOR8754805
par Dormer Pramet
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$17.71 CAD - $17.71 CAD
$17.71 CAD
$17.71 CAD - $17.71 CAD
$17.71 CAD

Vendu en lots de : 10

For more information about this product, click here

Identification
Ordering Code (ANSI)SPKN 42EDSR:M8130
Product Name (ISO)SPKN 1203EDSR:M8130
Product Number8754805
Product FamilySPKN

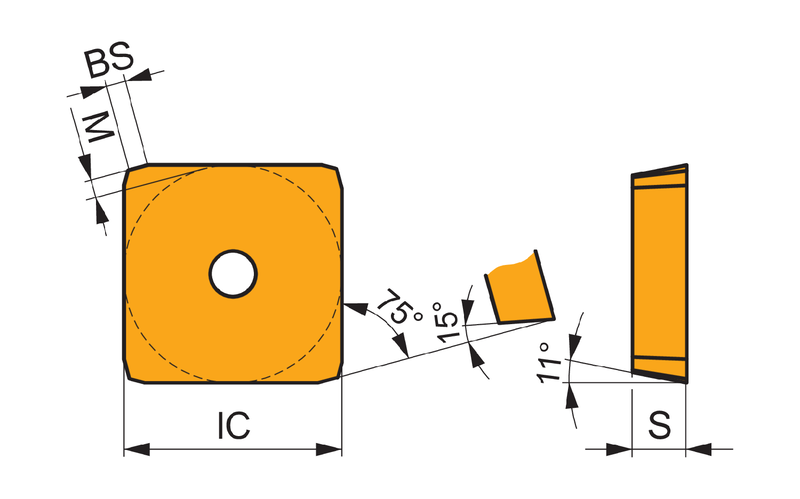

Insert Geometry
Insert DesignSPKN
Insert Shape Code (SC)C - carré
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.125"
Insert Thickness — mm (S)3.18 mm
Depth of Cut Max — in (APMX)0.354"
Depth of Cut Max — mm (APMX)9.0 mm
Tool Information
Reference Numbers
EDP Number8754805
EAN3603604521284
File Type Download
SPKN 42EDSR:M8130 — Line Drawing PDF Download
