TPU 323:M8130

UGC DOR8754821
par Dormer Pramet
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$13.63 CAD - $13.63 CAD
$13.63 CAD
$13.63 CAD - $13.63 CAD
$13.63 CAD

Vendu en lots de : 10

For more information about this product, click here

Identification
Ordering Code (ANSI)TPU 323:M8130
Product Name (ISO)TPUN 160312:M8130
Product Number8754821
Product FamilyPONT

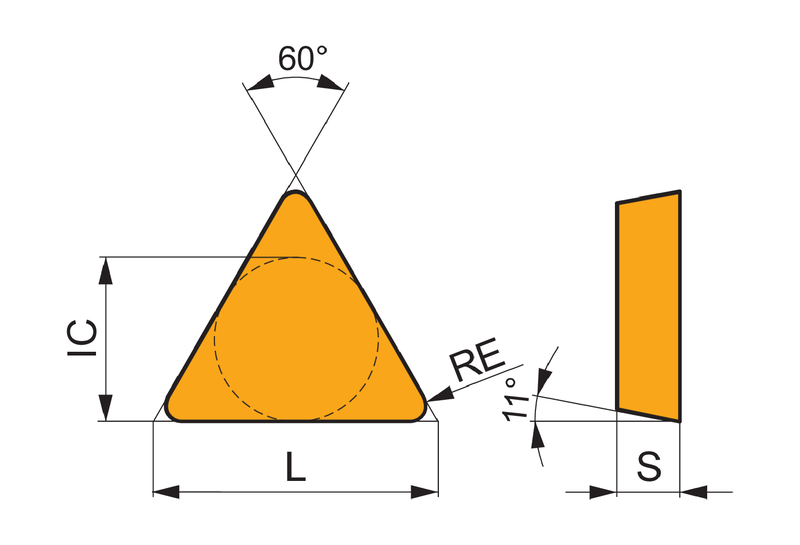

Insert Geometry
Insert DesignTPUN
Insert Shape Code (SC)T - triangulaire avec un angle inclus de 60°
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.525 mm
Insert Thickness — in (S)0.125"
Insert Thickness — mm (S)3.18 mm
Corner Radius — in (RE)0.047"
Corner Radius — mm (RE)1.2 mm
Depth of Cut Max — in (APMX)0.472"
Depth of Cut Max — mm (APMX)12.0 mm
Tool Information
Reference Numbers
EDP Number8754821
EAN3603604521444
