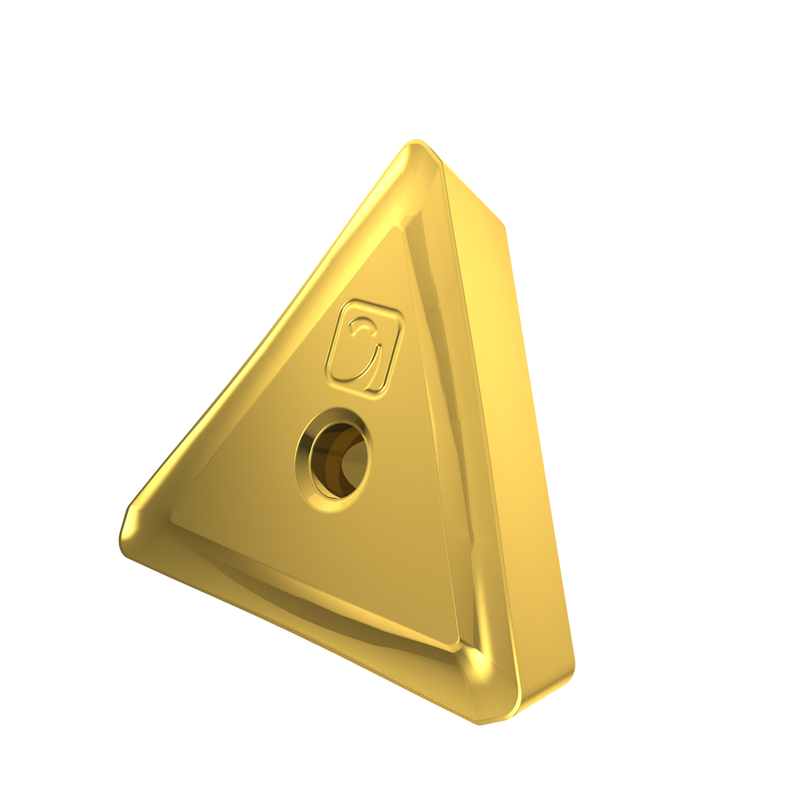

TPKR 43PDSR:M8140

UGC DOR8754858
par Dormer Pramet
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$24.07 CAD - $24.07 CAD
$24.07 CAD
$24.07 CAD - $24.07 CAD
$24.07 CAD

Vendu en lots de : 10

For more information about this product, click here

Identification
Ordering Code (ANSI)TPKR 43PDSR:M8140
Product Name (ISO)TPKR 2204PDSR:M8140
Product Number8754858
Product FamilyTaux de participation au capital du régime

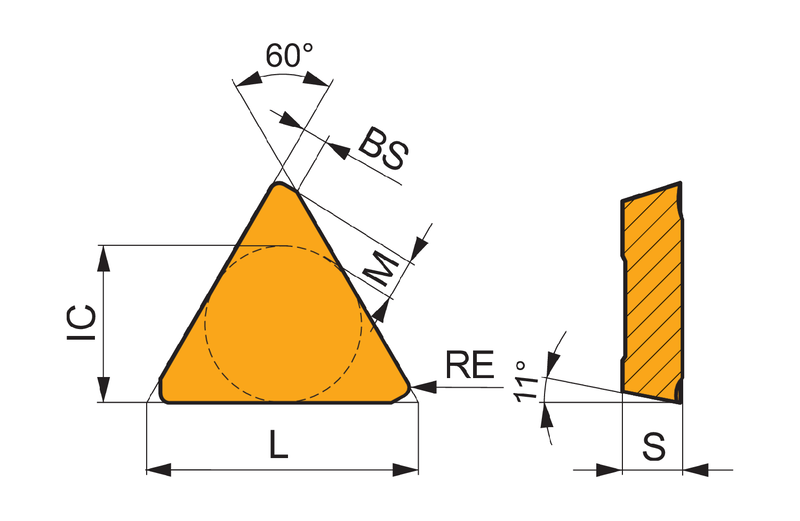

Insert Geometry
Insert DesignTPCR
Insert Shape Code (SC)T - triangulaire avec un angle inclus de 60°
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Depth of Cut Max — in (APMX)0.669"
Depth of Cut Max — mm (APMX)17.0 mm
Tool Information
Reference Numbers
EDP Number8754858
EAN3603604521819
