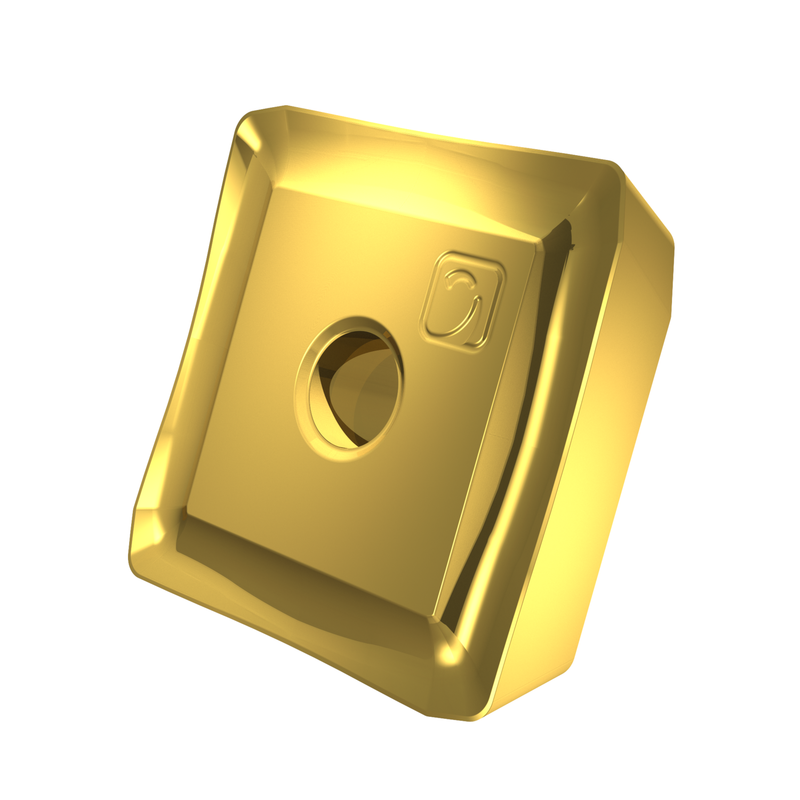

HPKR 53EDSR:M8140

UGC DOR8758198
par Dormer Pramet
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$27.50 CAD - $27.50 CAD
$27.50 CAD
$27.50 CAD - $27.50 CAD
$27.50 CAD

Vendu en lots de : 10

For more information about this product, click here

Identification
Ordering Code (ANSI)HPKR 53EDSR:M8140
Product Name (ISO)SPKR 1504EDSR:M8140
Product Number8758198
Product FamilyORATRICE

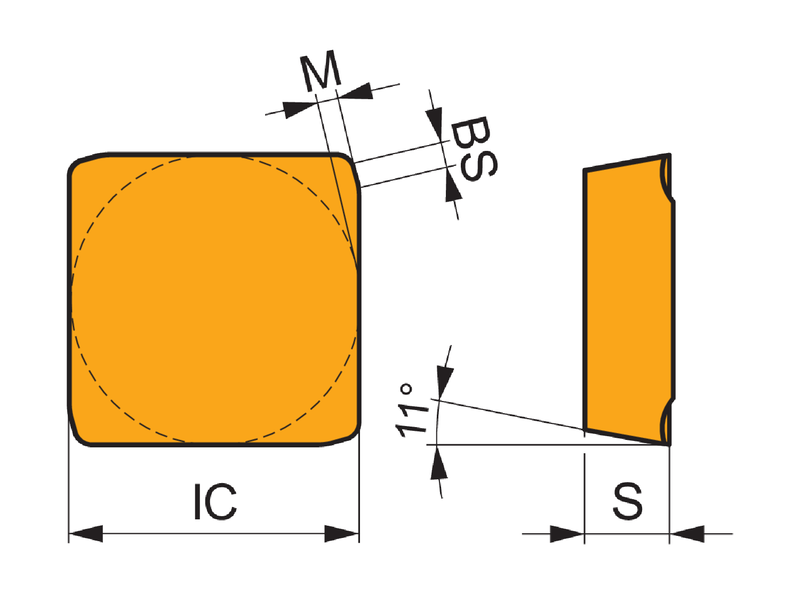

Insert Geometry
Insert DesignORATRICE
Insert Shape Code (SC)C - carré
Inscribed Circle Dia. — in (IC)0.625"
Inscribed Circle Dia. — mm (IC)15.875 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Depth of Cut Max — in (APMX)0.472"
Depth of Cut Max — mm (APMX)12.0 mm
Tool Information
Reference Numbers
EDP Number8758198
EAN3603604523394
