EPMT 1.81.50.5-NF2:T9425
EPMT 1.81.50.5-NF2:T9425
EPMT 1.81.50.5-NF2:T9425
EPMT 1.81.50.5-NF2:T9425

EPMT 1.81.50.5-NF2:T9425

UGC DOR8986005
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$10.61 CAD - $10.61 CAD
$10.61 CAD
$10.61 CAD - $10.61 CAD
$10.61 CAD

Vendu en lots de : 10

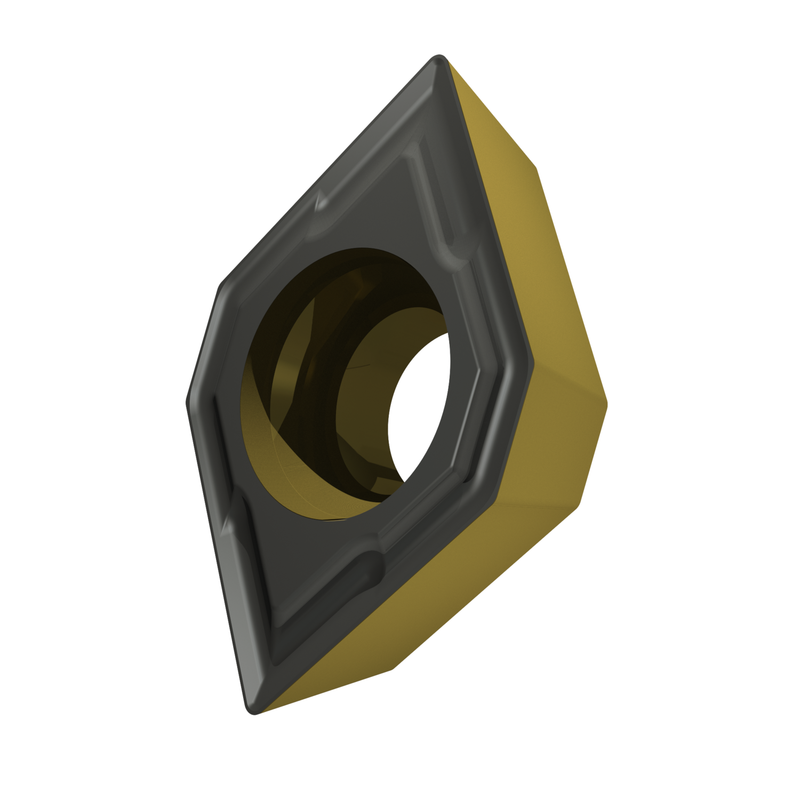

Plaquette positive simple face, E - rhomboïde angle de 75°, taille 5 avec un rayon de bec de 0,2 mm. Combinaison du brise-copeaux NF2 qui est tranchant et le premier choix pour la finition des aciers inoxydables. Il présente un angle de coupe positif sans méplat. Il convient également aux superalliages et, sous certaines conditions, aux aciers, aux fontes et aux alliages non ferreux. Substrat T9425 revêtu MT-CVD, à gradient fonctionnel, conçu principalement pour les matériaux du groupe P. Convient aux matériaux : M - Aciers inoxydables (aciers résistants à la corrosion avec ≥ 11 % de chrome) et coupe continue.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)EPMT 1.81.50.5-NF2:T9425
GradeT9425
Chipbreaker (CBMD)NF2
Product Number8986005
Product FamilyGEPM

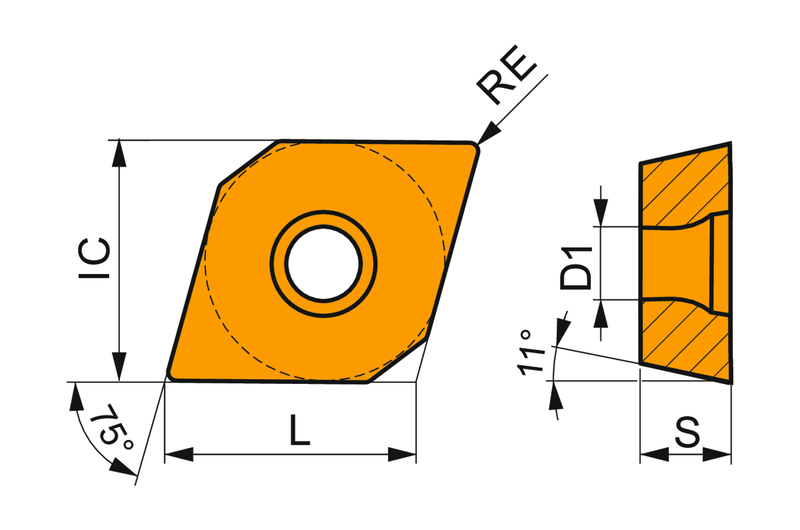

Insert Geometry
Insert DesignEPMT
Insert Shape Code (SC)F - angle de 75° inclus en E rhombe
Insert Geometry
Inscribed Circle Dia. — in (IC)0.219"
Inscribed Circle Dia. — mm (IC)5.56 mm
Insert Thickness — in (S)0.094"
Insert Thickness — mm (S)2.38 mm
Corner Radius — in (RE)0.008"
Corner Radius — mm (RE)0.2 mm
Depth of Cut Max — in (APMX)0.098"
Depth of Cut Max — mm (APMX)2.5 mm
Tool Information
Tool DesignPE
SubstrateSubstrat à gradient fonctionnel
Reference Numbers
EDP Number8986005
EAN3603604778107
Material Group Suitability
P — Steel and Cast Steel Utilisation possible
M — Stainless Steel Usage principal
K — Cast Iron Utilisation possible
S — High Temperature Alloys Utilisation possible
File Type Download
EPMT 1.81.50.5-NF2:T9425 — Line Drawing PDF Download
