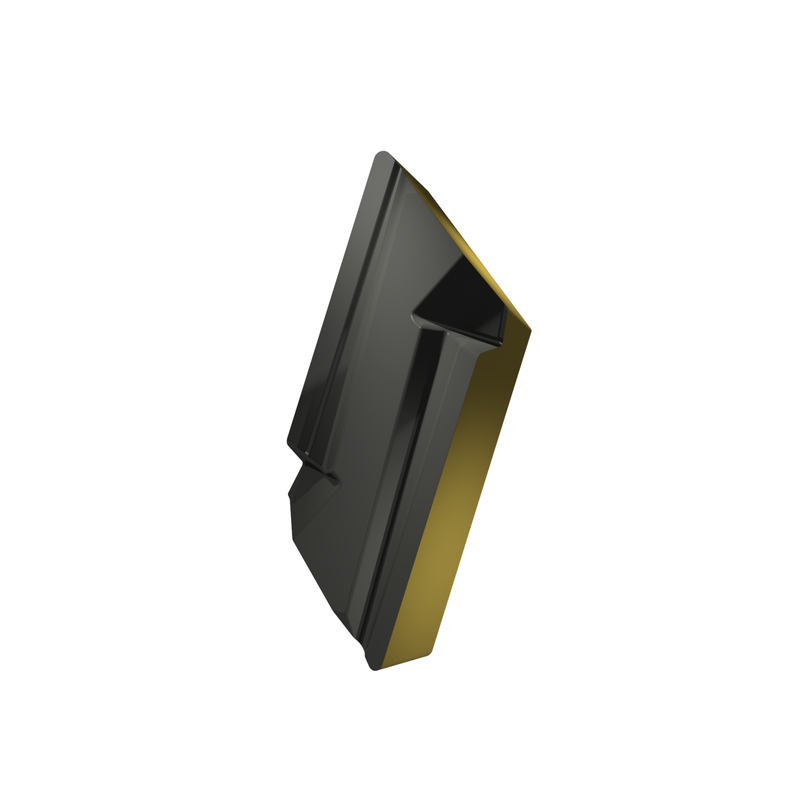

KNUX 160405ER-72:T9425
KNUX 160405ER-72:T9425
KNUX 160405ER-72:T9425
KNUX 160405ER-72:T9425

KNUX 160405ER-72:T9425

UGC DOR8985843
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$23.57 CAD - $23.57 CAD
$23.57 CAD
$23.57 CAD - $23.57 CAD
$23.57 CAD

Vendu en lots de : 10
Plaquette négative double face, K - parallélogramme 55° d’angle d’arête, taille 16 avec rayon de bec 0,5 mm. Combinaison de géométrie de brise-copeaux ER-72 à droite pour l'usinage de finition et les coupes continues. Substrat T9425 à gradient fonctionnel, revêtu MT-CVD, conçu principalement pour les matériaux du groupe P. Convient aux matériaux : P - Acier et acier moulé (aciers alliés ≤ 10 % et dureté < 45HRC), K - Fonte (pièces moulées en alliages de fer et de carbone avec > 2 % de teneur en carbone) et Coupe continue.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)KNUX 160405ER-72:T9425
GradeT9425
Chipbreaker (CBMD)72
Product Number8985843
Product FamilyKNUX
Insert Geometry
Insert DesignKNUX
Insert Shape Code (SC)K - parallélogramme angle inclus 55°
Insert Geometry
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.02"
Corner Radius — mm (RE)0.5 mm
Depth of Cut Max — in (APMX)0.157"
Depth of Cut Max — mm (APMX)4.0 mm
Tool Information
Tool DesignCV
SubstrateSubstrat à gradient fonctionnel
Reference Numbers
EDP Number8985843
EAN3603604776714
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage possible
K — Cast Iron Usage principal
S — High Temperature Alloys Utilisation possible
File Type Download
KNUX 160405ER-72:T9425 — Line Drawing PDF Download
