KNUX 160405R-22:T9425
KNUX 160405R-22:T9425
KNUX 160405R-22:T9425
KNUX 160405R-22:T9425

KNUX 160405R-22:T9425

UGC DOR8985846
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$23.57 CAD - $23.57 CAD
$23.57 CAD
$23.57 CAD - $23.57 CAD
$23.57 CAD

Vendu en lots de : 10

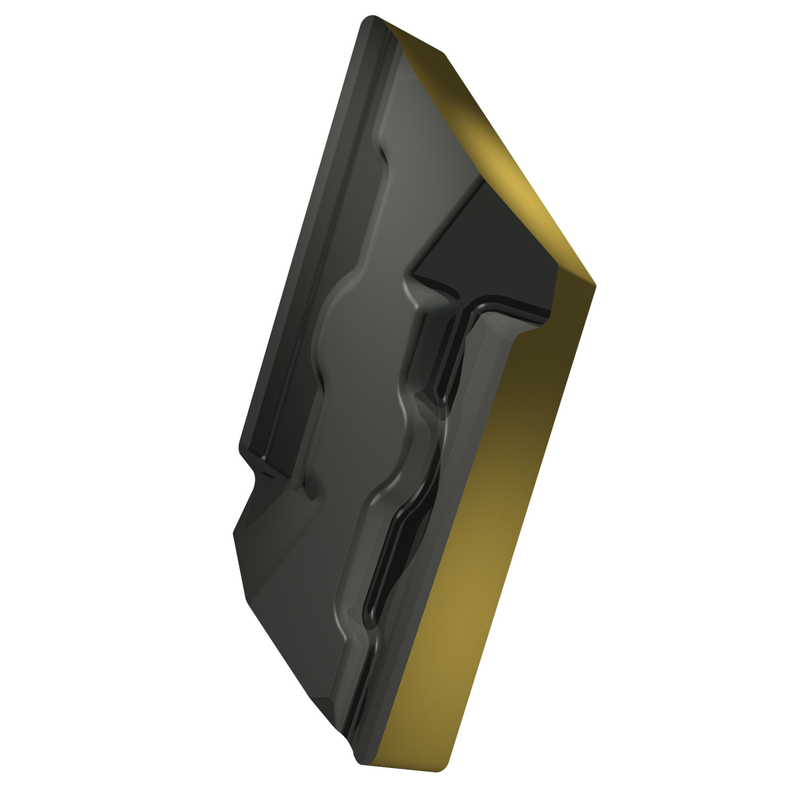

Plaquette de tournage négative double face, K - parallélogramme angle inclus 55°, taille 16 avec rayon de bec de 0,5 mm. Combinaison de la géométrie brise-copeaux R-22 avec une conception à droite pour l'usinage de finition à semi-ébauche et les coupes continues, et du substrat à gradient fonctionnel T9425 revêtu MT-CVD, conçu principalement pour les matériaux du groupe P. Convient aux matériaux : P - Acier et acier moulé (aciers avec une teneur en alliage ≤ 10 % et une dureté < 45HRC) et coupe continue.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)KNUX 160405R-22:T9425
GradeT9425
Chipbreaker (CBMD)22
Product Number8985846
Product FamilyKNUX

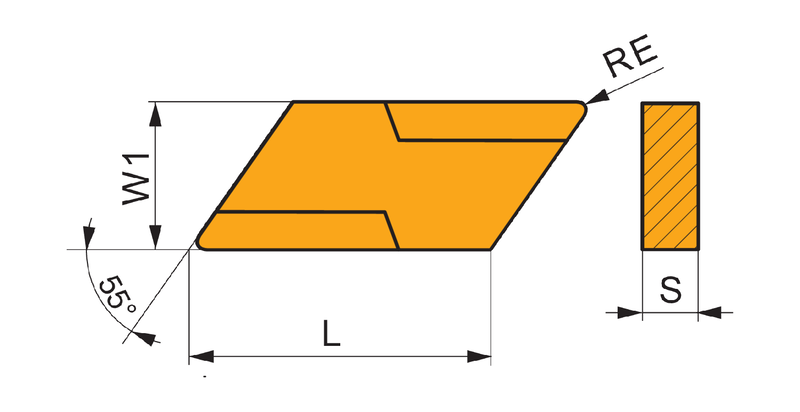

Insert Geometry
Insert DesignKNUX
Insert Shape Code (SC)K - parallélogramme angle interne 55°
Insert Geometry
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.02"
Corner Radius — mm (RE)0.5 mm
Depth of Cut Max — in (APMX)0.189"
Depth of Cut Max — mm (APMX)4.8 mm
Tool Information
Tool DesignCV
SubstrateSubstrat à gradient fonctionnel
Reference Numbers
EDP Number8985846
EAN3603604776745
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage possible
K — Cast Iron Utilisation possible
File Type Download
KNUX 160405R-22:T9425 — Line Drawing PDF Download
