LNUX 40-1129003:T9425
LNUX 40-1129003:T9425
LNUX 40-1129003:T9425
LNUX 40-1129003:T9425

LNUX 40-1129003:T9425

UGC DOR8182947
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$140.71 CAD - $140.71 CAD
$140.71 CAD
$140.71 CAD - $140.71 CAD
$140.71 CAD

Vendu en lots de : 5

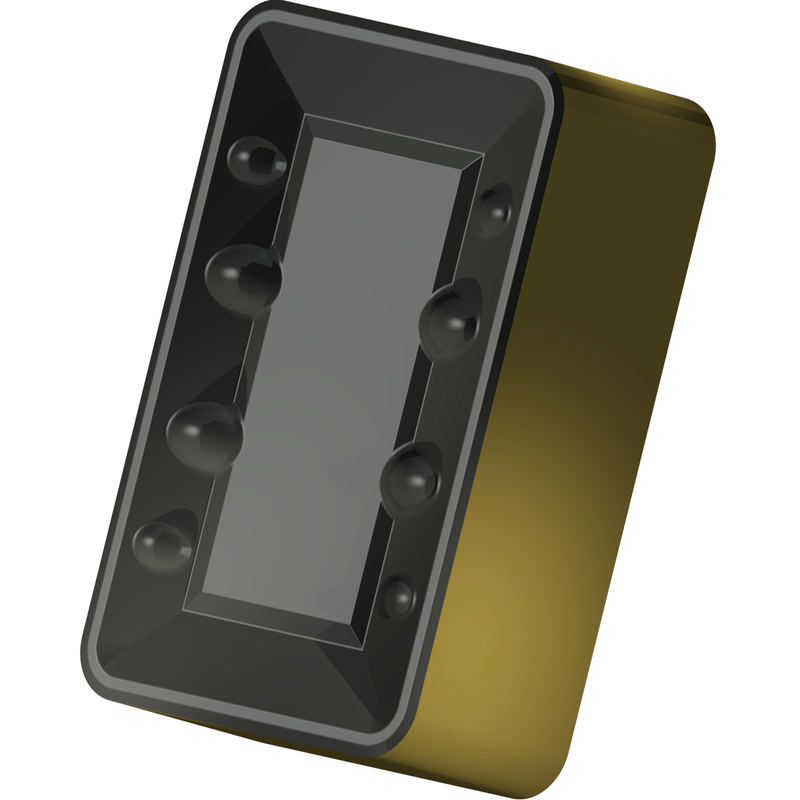

Plaquette négative double face, L - rectangulaire, taille 40 avec rayon de bec de 3,2 mm. Combinaison de brise-copeaux LN.X pour l'ébauche lourde et les coupes continues à interrompues. Substrat T9425 revêtu MT-CVD, à gradient fonctionnel, conçu principalement pour les matériaux du groupe P. Convient aux matériaux suivants : P - Acier et acier moulé (aciers alliés ≤ 10 % et dureté < 45 HRC), K - Fonte (moulages de fer et d'alliages de carbone avec > 2 % de carbone) et coupe légèrement interrompue.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)LNUX 40-1129003:T9425
GradeT9425
Chipbreaker (CBMD)40 - 03
Product Number8182947
Product FamilyLNUX 40, LN.X 50
Insert Geometry
Insert DesignLNUX 40, LN.X 50
Insert Shape Code (SC)L - rectangulaire
Insert Geometry
Insert Thickness — in (S)0.551"
Insert Thickness — mm (S)14.0 mm
Corner Radius — in (RE)0.126"
Corner Radius — mm (RE)3.2 mm
Depth of Cut Max — in (APMX)1.063"
Depth of Cut Max — mm (APMX)27.0 mm
Tool Information
Tool DesignLN
SubstrateSubstrat à gradient fonctionnel
Reference Numbers
EDP Number8182947
EAN3603603952348
Material Group Suitability
P — Steel and Cast Steel Usage principal
K — Cast Iron Usage principal
File Type Download
LNUX 40-1129003:T9425 — Line Drawing PDF Download
