RC40315.0
RC40315.0
RC40315.0
RC40315.0

RC40315.0

UGC DOR8881855
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$453.36 CAD - $453.36 CAD
$453.36 CAD
$453.36 CAD - $453.36 CAD
$453.36 CAD

Vendu en lots de : 1

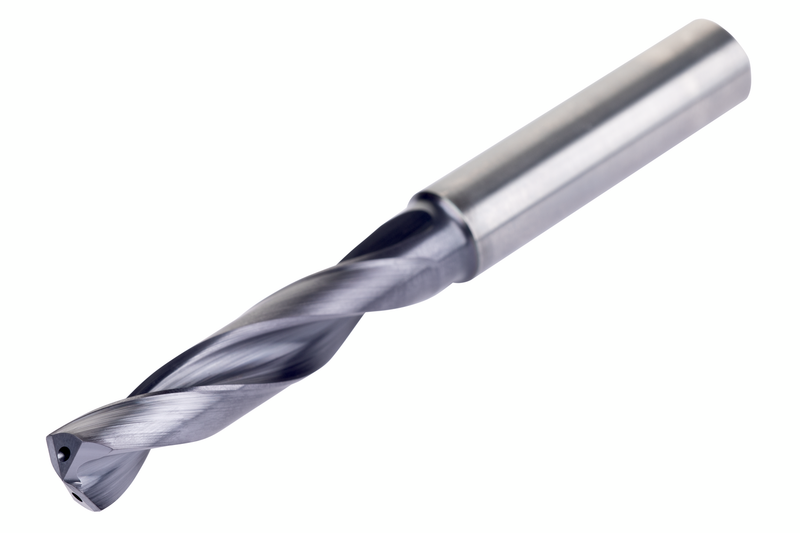

Ce foret haute performance de 15 mm de diamètre de coupe est spécialement conçu pour offrir une qualité de trou supérieure à des vitesses et des avances élevées (tolérance de trou H9 pour les multi-matériaux). Il dispose d'une pointe auto-centrante à 4 facettes de 140° et d'une hélice CTW. DCON MS 16 mm, LCF 65 mm et OAL 115 mm. Le revêtement TiAlN-top augmente la dureté de surface, améliore la résistance à l'usure et prolonge la durée de vie de l'outil. Le lubrifiant interne améliore l'évacuation des copeaux.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)RC40315.0
GradeTiAlN/Sommet
Product Number8881855
Product FamilyRC403
Dimensions
Cutting Diameter — in (DC)0.5906"
Cutting Diameter — mm (DC)15.0 mm
Overall Length — in (OAL)4.5276"
Overall Length — mm (OAL)115.0 mm
Flute Length — in (LCF)2.5591"
Flute Length — mm (LCF)65.0 mm
Length × Diameter Ratio8xR
Connection Dia. — in (DCON)0.6299"
Connection Dia. — mm (DCON)16.0 mm
Drill Point Angle (SIG)140°
Tool Information
ShankQueue cylindrique DIN 6535 HA
Through Coolant Yes
StandardDIN 6537
Reference Numbers
EDP Number8881855
EAN3603607339497
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Usage principal
N — Non-Ferrous Metals Utilisation possible
S — High Temperature Alloys Usage principal
File Type Download
RC40315.0 — 3D Model STP Download
RC40315.0 — 2D Model DXF Download
RC40315.0 — Line Drawing PDF Download
