RC40323/32
RC40323/32
RC40323/32
RC40323/32

RC40323/32

UGC DOR8881873
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$736.21 CAD - $736.21 CAD
$736.21 CAD
$736.21 CAD - $736.21 CAD
$736.21 CAD

Vendu en lots de : 1

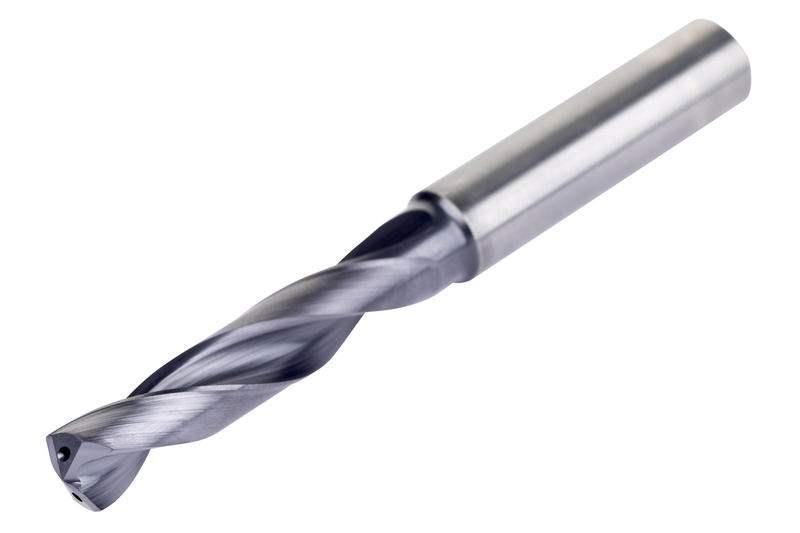

La perceuse haute performance d'un diamètre de coupe de 23/32 pouces est spécialement conçue pour offrir une qualité de trou supérieure à des vitesses et des avances élevées (tolérance de trou H9 pour les multi-matériaux). Pointe de centrage automatique à 140° à 4 facettes et construction de cannelure CTW. DCON MS 20 mm, LCF 79 mm et OAL 131 mm. Le revêtement TiAlN-top augmente la dureté de surface, améliore la résistance à l'usure et prolonge la durée de vie de l'outil. Le liquide de refroidissement interne améliore l'évacuation des copeaux.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)RC40323/32
GradeTiAlN/Sommet
Product Number8881873
Product FamilyRC403
Dimensions
Cutting Diameter — in (DC)0.7189"
Cutting Diameter — mm (DC)18.26 mm
Cutting Diameter — Fractional23/32
Overall Length — in (OAL)5.1575"
Overall Length — mm (OAL)131.0 mm
Flute Length — in (LCF)3.1102"
Flute Length — mm (LCF)79.0 mm
Length × Diameter Ratio7xD
Connection Dia. — in (DCON)0.7874"
Connection Dia. — mm (DCON)20.0 mm
Drill Point Angle (SIG)140°
Tool Information
ShankQueue cylindrique DIN 6535 HA
Through Coolant Yes
StandardDIN 6537
Reference Numbers
EDP Number8881873
EAN3603607339671
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Usage principal
N — Non-Ferrous Metals Utilisation possible
S — High Temperature Alloys Usage principal
File Type Download
RC40323/32 — 3D Model STP Download
RC40323/32 — 2D Model DXF Download
RC40323/32 — Line Drawing PDF Download
