RC4033.6
RC4033.6
RC4033.6
RC4033.6

RC4033.6

UGC DOR8881674
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$114.71 CAD - $114.71 CAD
$114.71 CAD
$114.71 CAD - $114.71 CAD
$114.71 CAD

Vendu en lots de : 1

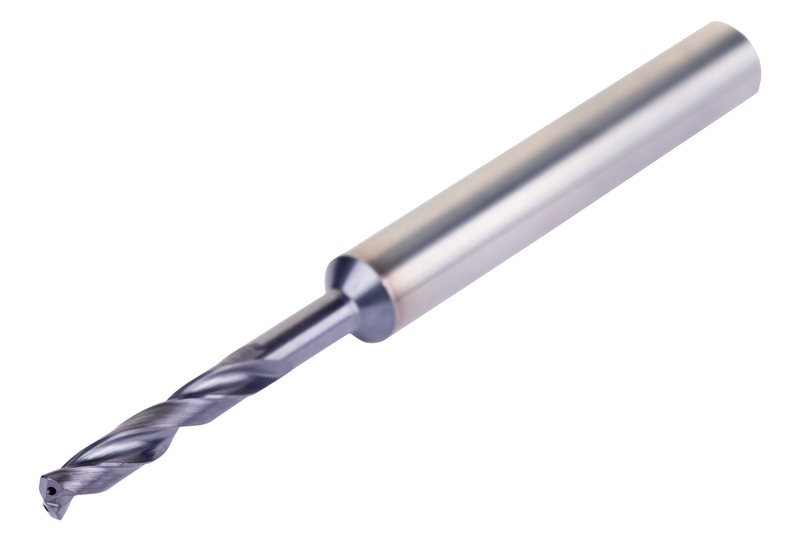

La perceuse haute performance de 3,6 mm de diamètre de coupe est spécifiquement conçue pour offrir une qualité de trou supérieure à des vitesses et avances élevées (tolérance de trou H9 pour les multi-matériaux). Pointe auto-centrante à 140°, 4 facettes et construction de la goujure CTW. DCON MS 6 mm, LCF 20 mm et OAL 62 mm. Le revêtement TiAlN-top augmente la dureté de la surface, améliore la résistance à l'usure et prolonge la durée de vie de l'outil. Le liquide de refroidissement interne améliore l'évacuation des copeaux.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)RC4033.6
GradeTiAlN/Sommet
Product Number8881674
Product FamilyRC403
Dimensions
Cutting Diameter — in (DC)0.1417"
Cutting Diameter — mm (DC)3.6 mm
Overall Length — in (OAL)2.4409"
Overall Length — mm (OAL)62.0 mm
Flute Length — in (LCF)0.7874"
Flute Length — mm (LCF)20.0 mm
Length × Diameter Ratio17xD
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Drill Point Angle (SIG)140°
Tool Information
ShankQueue cylindrique DIN 6535 HA
Through Coolant Yes
StandardDIN 6537
Reference Numbers
EDP Number8881674
EAN3603607337684
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Usage principal
N — Non-Ferrous Metals Utilisation possible
S — High Temperature Alloys Usage principal
File Type Download
RC4033.6 — 3D Model STP Download
RC4033.6 — 2D Model DXF Download
RC4033.6 — Line Drawing PDF Download
