RC4034.2
RC4034.2
RC4034.2
RC4034.2

RC4034.2

UGC DOR8881690
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$127.29 CAD - $127.29 CAD
$127.29 CAD
$127.29 CAD - $127.29 CAD
$127.29 CAD

Vendu en lots de : 1

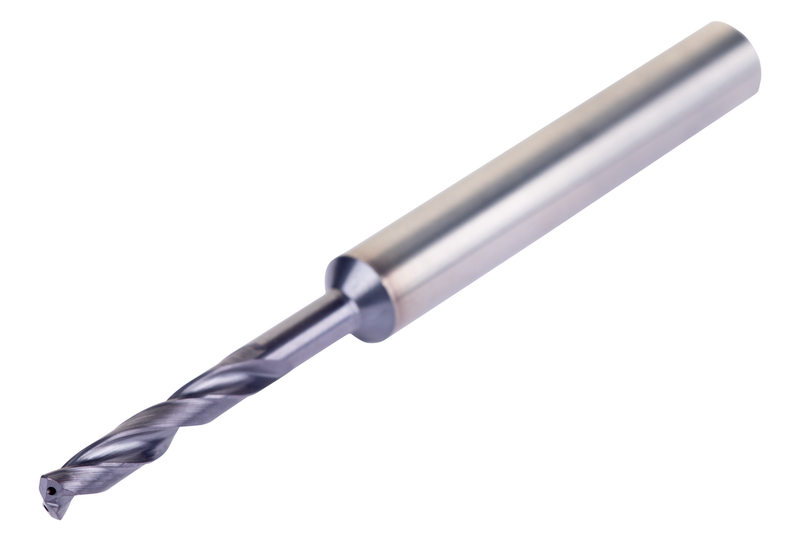

Le foret haute performance de 4,2 mm de diamètre de coupe est spécialement conçu pour offrir une qualité de trou supérieure à des vitesses et avances élevées (tolérance de trou H9 pour les multi-matériaux). Il est doté d'une pointe auto-centrante à 140° et à 4 facettes, ainsi que d'une construction de goujure CTW. DCON MS 6 mm, LCF 24 mm et OAL 66 mm. Le revêtement TiAlN-top augmente la dureté de surface, améliore la résistance à l'usure et prolonge la durée de vie de l'outil. Le liquide de coupe interne améliore l'évacuation des copeaux.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)RC4034.2
GradeTiAlN/Sommet
Product Number8881690
Product FamilyRC403
Dimensions
Cutting Diameter — in (DC)0.1654"
Cutting Diameter — mm (DC)4.2 mm
Overall Length — in (OAL)2.5984"
Overall Length — mm (OAL)66.0 mm
Flute Length — in (LCF)0.9449"
Flute Length — mm (LCF)24.0 mm
Length × Diameter Ratio16 fois
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Drill Point Angle (SIG)140°
Tool Information
ShankQueue cylindrique DIN 6535 HA
Through Coolant Yes
StandardDIN 6537
Reference Numbers
EDP Number8881690
EAN3603607337844
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Usage principal
N — Non-Ferrous Metals Utilisation possible
S — High Temperature Alloys Usage principal
File Type Download
RC4034.2 — 3D Model STP Download
RC4034.2 — 2D Model DXF Download
RC4034.2 — Line Drawing PDF Download
