RC40347/64
RC40347/64
RC40347/64
RC40347/64

RC40347/64

UGC DOR8881875
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$736.21 CAD - $736.21 CAD
$736.21 CAD
$736.21 CAD - $736.21 CAD
$736.21 CAD

Vendu en lots de : 1

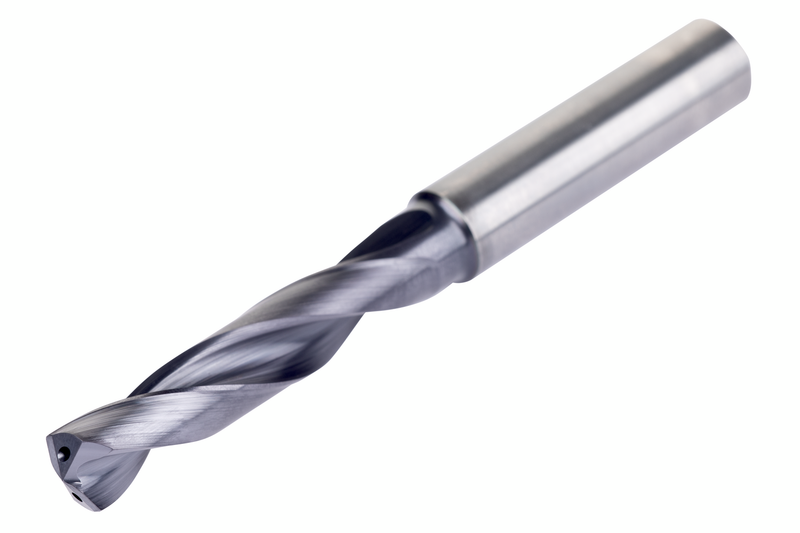

La perceuse haute performance de 47/64 pouces de diamètre de coupe est spécialement conçue pour offrir une qualité de trou supérieure à des vitesses et des avances élevées (tolérance de trou H9 pour les multi-matériaux). Pointe auto-centrée à 140° à 4 facettes et conception de la cannelure CTW. DCON MS 20 mm, LCF 79 mm et OAL 131 mm. Le revêtement supérieur en TiAlN augmente la dureté de la surface, améliore la résistance à l'usure et prolonge la durée de vie de l'outil. Le lubrifiant interne améliore l'évacuation des copeaux.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)RC40347/64
GradeTiAlN/Top
Product Number8881875
Product FamilyRC403
Dimensions
Cutting Diameter — in (DC)0.7343"
Cutting Diameter — mm (DC)18.65 mm
Cutting Diameter — Fractional47/64
Overall Length — in (OAL)5.1575"
Overall Length — mm (OAL)131.0 mm
Flute Length — in (LCF)3.1102"
Flute Length — mm (LCF)79.0 mm
Length × Diameter Ratio7xD
Connection Dia. — in (DCON)0.7874"
Connection Dia. — mm (DCON)20.0 mm
Drill Point Angle (SIG)140°
Tool Information
ShankQueue cylindrique DIN 6535 HA
Through Coolant Yes
StandardDIN 6537
Reference Numbers
EDP Number8881875
EAN3603607339695
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Usage principal
N — Non-Ferrous Metals Utilisation possible
S — High Temperature Alloys Usage principal
File Type Download
RC40347/64 — 3D Model STP Download
RC40347/64 — 2D Model DXF Download
RC40347/64 — Line Drawing PDF Download
