RC4039.4
RC4039.4
RC4039.4
RC4039.4

RC4039.4

UGC DOR8881798
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$181.50 CAD - $181.50 CAD
$181.50 CAD
$181.50 CAD - $181.50 CAD
$181.50 CAD

Vendu en lots de : 1

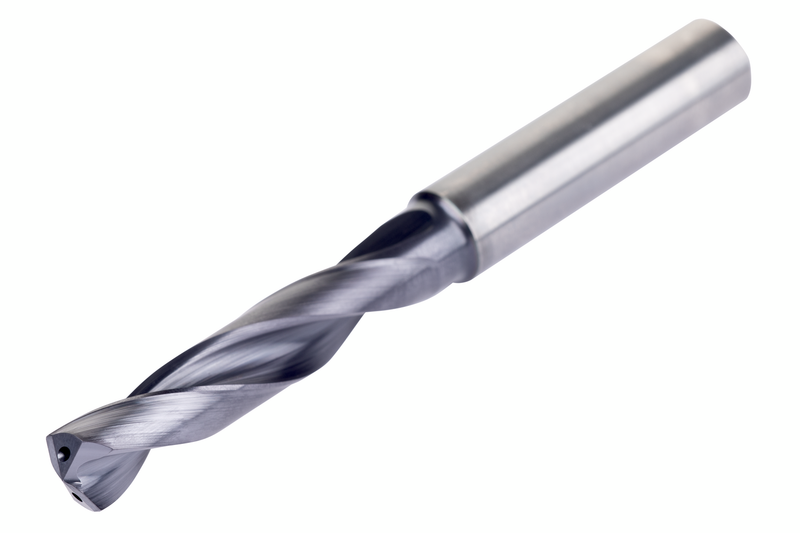

Le foret haute performance de 9,4 mm de diamètre de coupe est spécialement conçu pour offrir une qualité de trou supérieure à des vitesses et avances élevées (tolérance de trou H9 pour les multi-matériaux). Pointe auto-centrante à 140°, 4 facettes, et construction de la goujure CTW. DCON MS 10 mm, LCF 47 mm et OAL 89 mm. Le revêtement supérieur en TiAlN augmente la dureté de surface, améliore la résistance à l'usure et prolonge la durée de vie de l'outil. Le liquide de refroidissement interne améliore l'évacuation des copeaux.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)RC4039.4
GradeTiAlN/Sommet
Product Number8881798
Product FamilyRC403
Dimensions
Cutting Diameter — in (DC)0.3701"
Cutting Diameter — mm (DC)9.4 mm
Overall Length — in (OAL)3.5039"
Overall Length — mm (OAL)89.0 mm
Flute Length — in (LCF)1.8504"
Flute Length — mm (LCF)47.0 mm
Length × Diameter Ratio9xD
Connection Dia. — in (DCON)0.3937"
Connection Dia. — mm (DCON)10.0 mm
Drill Point Angle (SIG)140°
Tool Information
ShankQueue cylindrique DIN 6535 HA
Through Coolant Yes
StandardDIN 6537
Reference Numbers
EDP Number8881798
EAN3603607338926
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Usage principal
N — Non-Ferrous Metals Utilisation possible
S — High Temperature Alloys Usage principal
File Type Download
RC4039.4 — 3D Model STP Download
RC4039.4 — 2D Model DXF Download
RC4039.4 — Line Drawing PDF Download
