UGC DOR8881748
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$150.86 CAD - $150.86 CAD
$150.86 CAD
$150.86 CAD - $150.86 CAD
$150.86 CAD

Vendu en lots de : 1

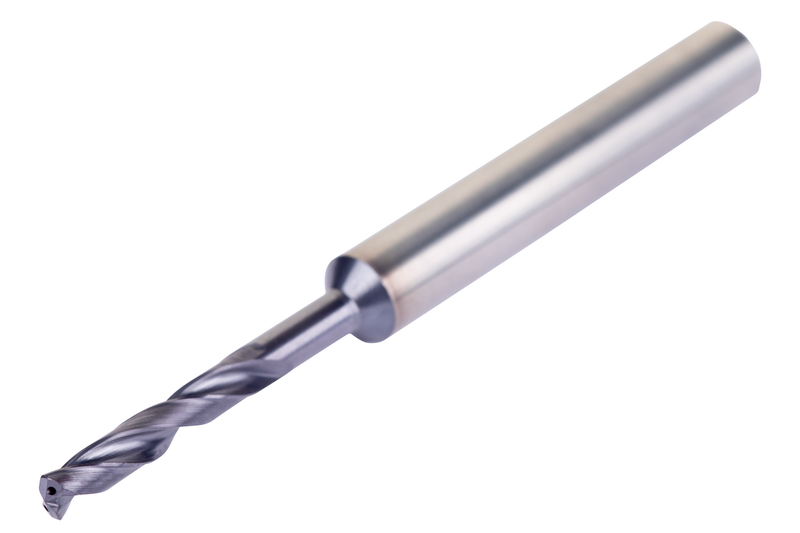

Le foret haute performance de diamètre de coupe G (0,261 pouces) est spécifiquement conçu pour offrir une qualité de trou supérieure à des vitesses et avances élevées (tolérance de trou H9 pour les multi-matériaux). Pointe en croix auto-centrante à 4 facettes de 140° et construction de goujures CTW. DCON MS 8 mm, LCF 34 mm et OAL 79 mm. Le revêtement TiAlN-top augmente la dureté de surface, améliore la résistance à l'usure et prolonge la durée de vie de l'outil. Le liquide de refroidissement interne améliore l'évacuation des copeaux.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)RC403G
GradeTiAlN/Sommet
Product Number8881748
Product FamilyRC403
Dimensions
Cutting Diameter — in (DC)0.261"
Cutting Diameter — mm (DC)6.63 mm
Overall Length — in (OAL)3.1102"
Overall Length — mm (OAL)79.0 mm
Flute Length — in (LCF)1.3386"
Flute Length — mm (LCF)34.0 mm
Length × Diameter Ratio12xJ
Connection Dia. — in (DCON)0.315"
Connection Dia. — mm (DCON)8.0 mm
Drill Point Angle (SIG)140°
Tool Information
ShankQueue cylindrique DIN 6535 HA
Through Coolant Yes
StandardDIN 6537
Reference Numbers
EDP Number8881748
EAN3603607338421
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Usage principal
N — Non-Ferrous Metals Usage possible
S — High Temperature Alloys Usage principal
File Type Download
RC403G — 3D Model STP Download
RC403G — 2D Model DXF Download
RC403G — Line Drawing PDF Download
