UGC DOR8881675
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$114.71 CAD - $114.71 CAD
$114.71 CAD
$114.71 CAD - $114.71 CAD
$114.71 CAD

Vendu en lots de : 1

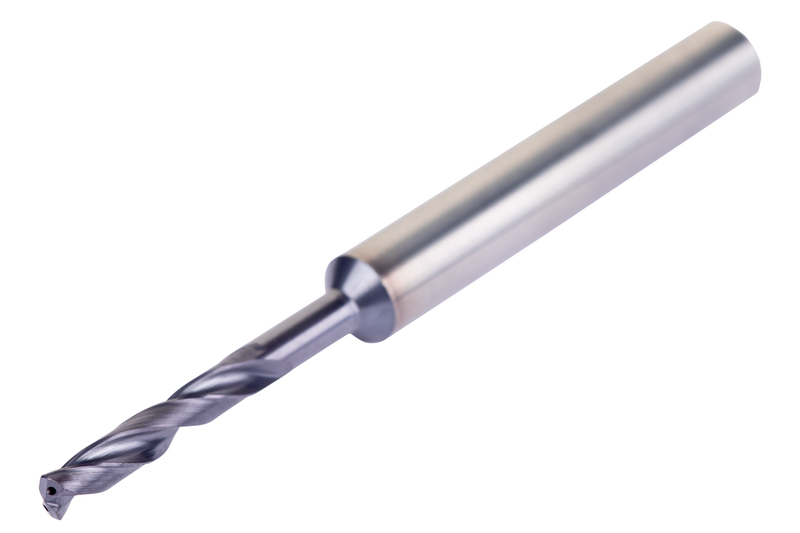

Le foret haute performance de diamètre de coupe N27 (0,1441 pouce) est spécifiquement conçu pour offrir une qualité de trou supérieure à des vitesses de coupe et des avances élevées (tolérance de trou H9 pour multi-matériaux). Pointe auto-centrante à 4 facettes de 140° et construction de goujure CTW. DCON MS 6 mm, LCF 20 mm et OAL 62 mm. Le revêtement TiAlN-top augmente la dureté de surface, améliore la résistance à l'usure et prolonge la durée de vie de l'outil. Le liquide de refroidissement interne améliore l'évacuation des copeaux.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)RC403N27
GradeTiAlN/Sommet
Product Number8881675
Product FamilyRC403
Dimensions
Cutting Diameter — in (DC)0.1441"
Cutting Diameter — mm (DC)3.66 mm
Overall Length — in (OAL)2.4409"
Overall Length — mm (OAL)62.0 mm
Flute Length — in (LCF)0.7874"
Flute Length — mm (LCF)20.0 mm
Length × Diameter Ratio17 fois D
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Drill Point Angle (SIG)140°
Tool Information
ShankQueue cylindrique DIN 6535 HA
Through Coolant Yes
StandardDIN 6537
Reference Numbers
EDP Number8881675
EAN3603607337691
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Usage principal
N — Non-Ferrous Metals Utilisation possible
S — High Temperature Alloys Usage principal
File Type Download
RC403N27 — 3D Model STP Download
RC403N27 — 2D Model DXF Download
RC403N27 — Line Drawing PDF Download
