RC403Z
RC403Z
RC403Z
RC403Z

RC403Z

UGC DOR8881817
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$245.93 CAD - $245.93 CAD
$245.93 CAD
$245.93 CAD - $245.93 CAD
$245.93 CAD

Vendu en lots de : 1

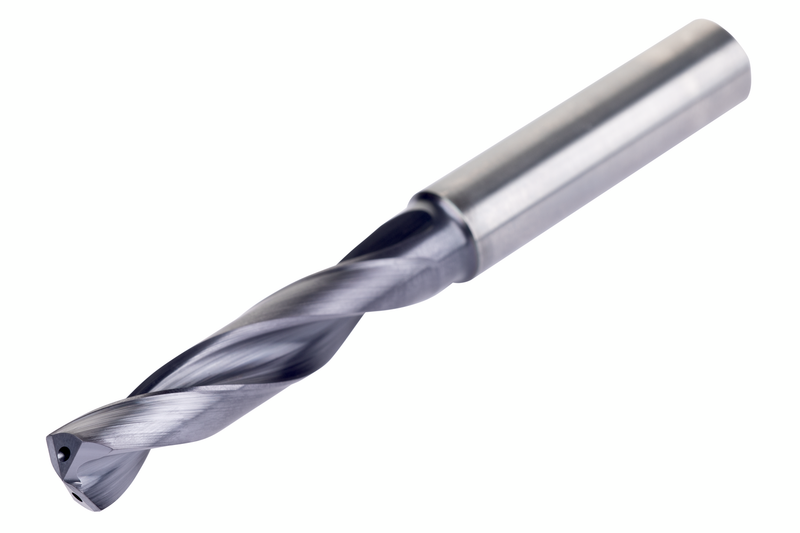

Le foret haute performance de diamètre de coupe Z (0,413 pouce) est spécifiquement conçu pour offrir une qualité de trou supérieure à des vitesses et avances élevées (tolérance de trou H9 pour les multi-matériaux). Pointe auto-centrante à 140° et 4 facettes, et construction de goujure CTW. DCON MS 12 mm, LCF 55 mm et OAL 102 mm. Le revêtement TiAlN-top augmente la dureté de surface, améliore la résistance à l'usure et prolonge la durée de vie de l'outil. Le liquide de refroidissement interne améliore l'évacuation des copeaux.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)RC403Z
GradeTiAlN/Sommet
Product Number8881817
Product FamilyRC403
Dimensions
Cutting Diameter — in (DC)0.413"
Cutting Diameter — mm (DC)10.49 mm
Overall Length — in (OAL)4.0157"
Overall Length — mm (OAL)102.0 mm
Flute Length — in (LCF)2.1654"
Flute Length — mm (LCF)55.0 mm
Length × Diameter Ratio10xD
Connection Dia. — in (DCON)0.4724"
Connection Dia. — mm (DCON)12.0 mm
Drill Point Angle (SIG)140°
Tool Information
ShankQueue cylindrique DIN 6535 HA
Through Coolant Yes
StandardDIN 6537
Reference Numbers
EDP Number8881817
EAN3603607339114
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Usage principal
N — Non-Ferrous Metals Utilisation possible
S — High Temperature Alloys Usage principal
File Type Download
RC403Z — 3D Model STP Download
RC403Z — 2D Model DXF Download
RC403Z — Line Drawing PDF Download
