UGC DOR8882235
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$296.21 CAD - $296.21 CAD
$296.21 CAD
$296.21 CAD - $296.21 CAD
$296.21 CAD

Vendu en lots de : 1

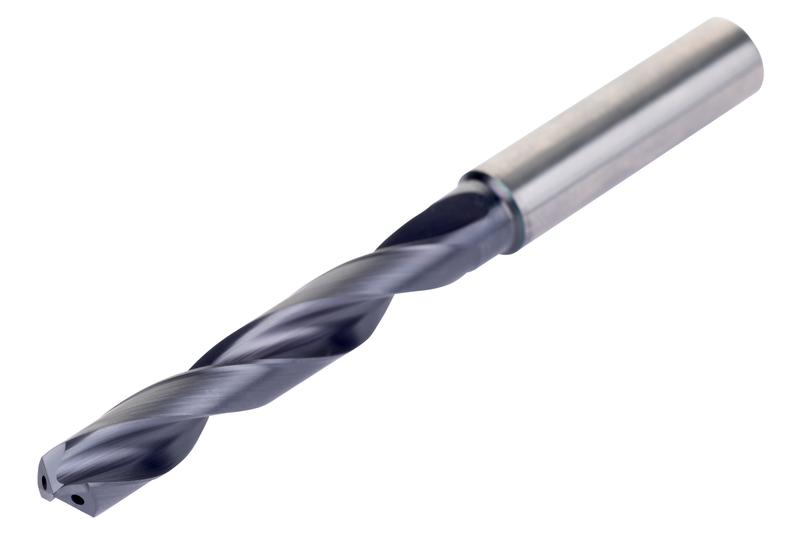

Le foret haute performance d'un diamètre de coupe de 10,3 mm est spécialement conçu pour fournir une qualité de trou supérieure à des vitesses et des avances élevées (tolérance de trou H9 pour les multi-matériaux). Une pointe auto-centrante à 140°, 4 facettes fendues et une construction de goujure CTW. DCON MS 12 mm, LCF 70 mm et OAL 118 mm. Le revêtement supérieur en TiAlN augmente la dureté de surface, améliore la résistance à l'usure et prolonge la durée de vie de l'outil. Le liquide de coupe interne améliore l'évacuation des copeaux.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)RC40510.3
GradeTiAlN/Sommet
Product Number8882235
Product FamilyRC405
Dimensions
Cutting Diameter — in (DC)0.4055"
Cutting Diameter — mm (DC)10.3 mm
Overall Length — in (OAL)4.6457"
Overall Length — mm (OAL)118.0 mm
Flute Length — in (LCF)2.7559"
Flute Length — mm (LCF)70.0 mm
Length × Diameter Ratio11 fois D
Connection Dia. — in (DCON)0.4724"
Connection Dia. — mm (DCON)12.0 mm
Drill Point Angle (SIG)140°
Tool Information
ShankQueue cylindrique DIN 6535 HA
Through Coolant Yes
StandardDIN 6537
Reference Numbers
EDP Number8882235
EAN3603607343296
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Usage principal
N — Non-Ferrous Metals Utilisation possible
S — High Temperature Alloys Usage principal
File Type Download
RC40510.3 — 3D Model STP Download
RC40510.3 — 2D Model DXF Download
RC40510.3 — Line Drawing PDF Download
