RC40511.6
RC40511.6
RC40511.6
RC40511.6

RC40511.6

UGC DOR8882251
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$296.21 CAD - $296.21 CAD
$296.21 CAD
$296.21 CAD - $296.21 CAD
$296.21 CAD

Vendu en lots de : 1

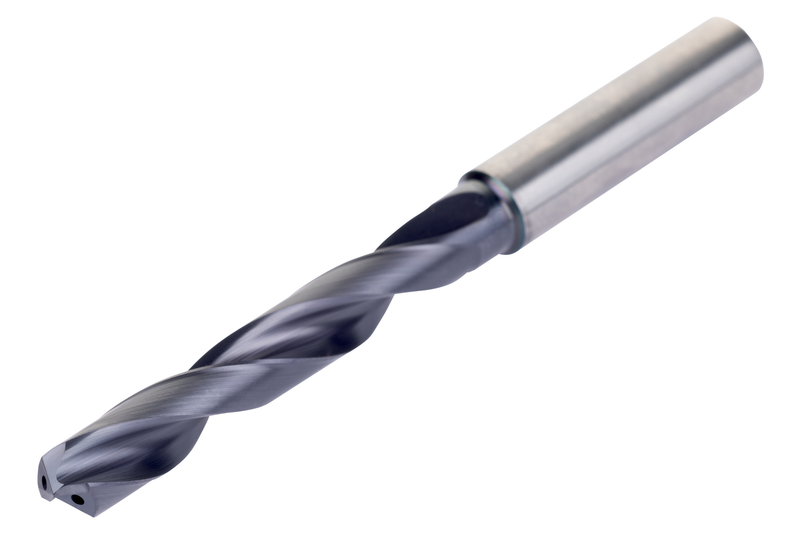

Le foret haute performance de 11,6 mm de diamètre de coupe est spécialement conçu pour offrir une qualité de trou supérieure à des vitesses et des avances élevées (tolérance de trou H9 pour les matériaux multiples). Une pointe fendue autocentrée à 4 facettes de 140° et une construction de goujure CTW. DCON MS 12 mm, LCF 70 mm et OAL 118 mm. Le revêtement supérieur TiAlN augmente la dureté de la surface, améliore la résistance à l'usure et prolonge la durée de vie de l'outil. Le lubrifiant interne améliore l'évacuation des copeaux.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)RC40511.6
GradeTiAlN/Top
Product Number8882251
Product FamilyRC405

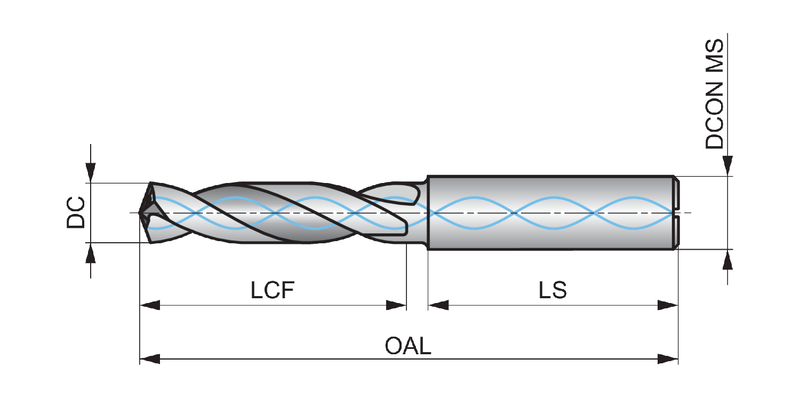

Dimensions
Cutting Diameter — in (DC)0.4567"
Cutting Diameter — mm (DC)11.6 mm
Overall Length — in (OAL)4.6457"
Overall Length — mm (OAL)118.0 mm
Flute Length — in (LCF)2.7559"
Flute Length — mm (LCF)70.0 mm
Length × Diameter Ratio10x
Connection Dia. — in (DCON)0.4724"
Connection Dia. — mm (DCON)12.0 mm
Drill Point Angle (SIG)140°
Tool Information
ShankQueue cylindrique DIN 6535 HA
Through Coolant Yes
StandardDIN 6537
Reference Numbers
EDP Number8882251
EAN3603607343456
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Usage principal
N — Non-Ferrous Metals Utilisation possible
S — High Temperature Alloys Usage principal
File Type Download
RC40511.6 — 3D Model STP Download
RC40511.6 — 2D Model DXF Download
RC40511.6 — Line Drawing PDF Download
