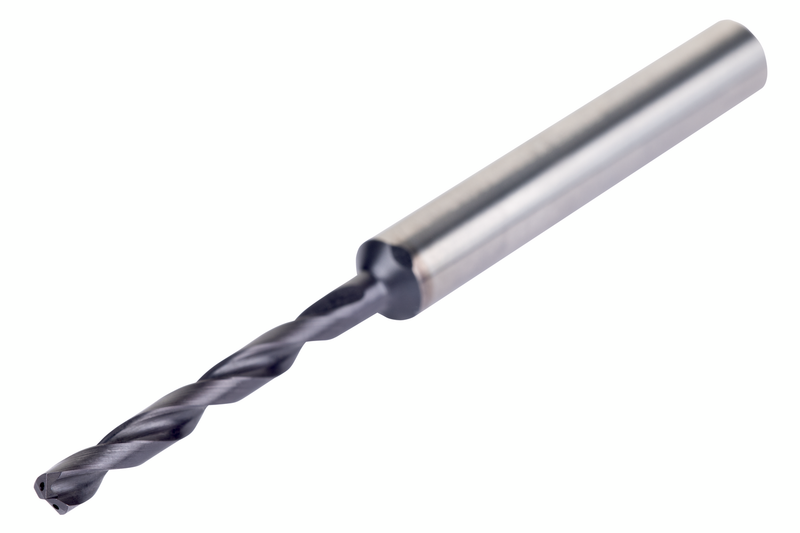

RC40513/64
RC40513/64
RC40513/64
RC40513/64

RC40513/64

UGC DOR8882137
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$153.21 CAD - $153.21 CAD
$153.21 CAD
$153.21 CAD - $153.21 CAD
$153.21 CAD

Vendu en lots de : 1

Forets haute performance de 13/64 pouces de diamètre de coupe, spécifiquement conçus pour offrir une qualité de trou supérieure à des vitesses et des avances élevées (tolérance de trou H9 pour les matériaux multiples). Une pointe de centrage automatique à 4 facettes et à 140°, avec construction de goujures CTW. DCON MS 6 mm, LCF 44 mm et OAL 82 mm. Le revêtement TiAlN-top augmente la dureté de la surface, améliore la résistance à l'usure et prolonge la durée de vie de l'outil. Le liquide de refroidissement interne améliore l'évacuation des copeaux.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)RC40513/64
GradeTiAlN/Sommet
Product Number8882137
Product FamilyRC405
Dimensions
Cutting Diameter — in (DC)0.2031"
Cutting Diameter — mm (DC)5.16 mm
Cutting Diameter — Fractional13/64
Overall Length — in (OAL)3.2283"
Overall Length — mm (OAL)82.0 mm
Flute Length — in (LCF)1.7323"
Flute Length — mm (LCF)44.0 mm
Length × Diameter Ratio16xJ
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Drill Point Angle (SIG)140°
Tool Information
ShankQueue cylindrique DIN 6535 HA
Through Coolant Yes
StandardDIN 6537
Reference Numbers
EDP Number8882137
EAN3603607342312
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Usage principal
N — Non-Ferrous Metals Utilisation possible
S — High Temperature Alloys Usage principal
File Type Download
RC40513/64 — 3D Model STP Download
RC40513/64 — 2D Model DXF Download
RC40513/64 — Line Drawing PDF Download
