UGC DOR8882293
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$541.36 CAD - $541.36 CAD
$541.36 CAD
$541.36 CAD - $541.36 CAD
$541.36 CAD

Vendu en lots de : 1

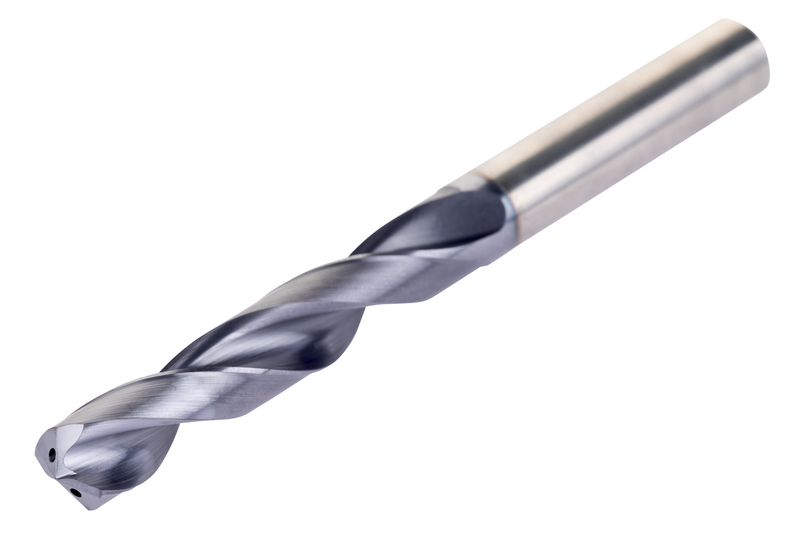

Le foret haute performance de 16 mm de diamètre de coupe est spécialement conçu pour fournir une qualité de trou supérieure à des vitesses et avances élevées (tolérance de trou H9 pour les matériaux multiples). Une pointe fendue autocentrée à 140° à 4 facettes et une construction d'hélice CTW. Tige parallèle avec DCON MS 16 mm, LCF 82 mm et OAL 133 mm. Le revêtement supérieur TiAlN augmente la dureté de la surface, améliore la résistance à l'usure et prolonge la durée de vie de l'outil. Le liquide de refroidissement interne améliore l'évacuation des copeaux.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)RC40516.0
GradeTiAlN/Toit
Product Number8882293
Product FamilyRC405

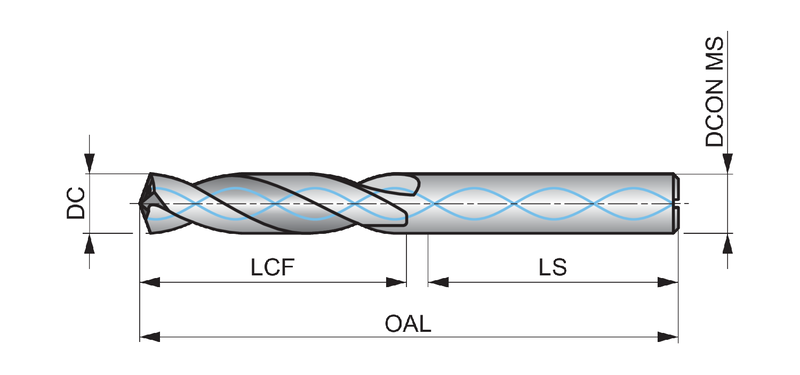

Dimensions
Cutting Diameter — in (DC)0.6299"
Cutting Diameter — mm (DC)16.0 mm
Overall Length — in (OAL)5.2362"
Overall Length — mm (OAL)133.0 mm
Flute Length — in (LCF)3.2283"
Flute Length — mm (LCF)82.0 mm
Length × Diameter Ratio8xR
Connection Dia. — in (DCON)0.6299"
Connection Dia. — mm (DCON)16.0 mm
Drill Point Angle (SIG)140°
Tool Information
ShankQueue cylindrique DIN 6535 HA
Through Coolant Yes
StandardDIN 6537
Reference Numbers
EDP Number8882293
EAN3603607343777
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Usage principal
N — Non-Ferrous Metals Utilisation possible
S — High Temperature Alloys Usage principal
File Type Download
RC40516.0 — 3D Model STP Download
RC40516.0 — 2D Model DXF Download
RC40516.0 — Line Drawing PDF Download
