RC4054.6
RC4054.6
RC4054.6
RC4054.6

RC4054.6

UGC DOR8882121
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$153.21 CAD - $153.21 CAD
$153.21 CAD
$153.21 CAD - $153.21 CAD
$153.21 CAD

Vendu en lots de : 1

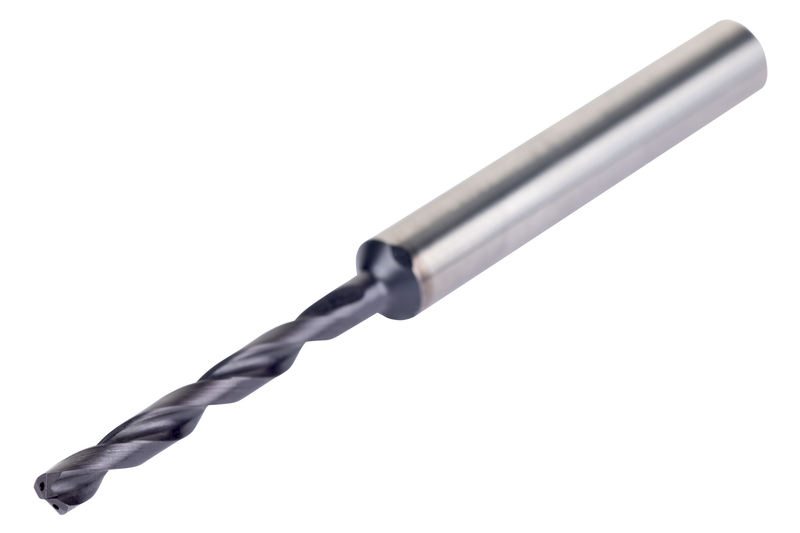

La perceuse haute performance d'un diamètre de coupe de 4,6 mm est spécialement conçue pour offrir une qualité de trou supérieure à des vitesses et avances élevées (tolérance de trou H9 pour les multi-matériaux). Pointe auto-centrante à 140°, à 4 facettes et construction de la goujure CTW. DCON MS 6 mm, LCF 36 mm et OAL 74 mm. Le revêtement supérieur en TiAlN augmente la dureté de surface, améliore la résistance à l'usure et prolonge la durée de vie de l'outil. Le liquide de refroidissement interne améliore l'évacuation des copeaux.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)RC4054.6
GradeTiAlN/Sommet
Product Number8882121
Product FamilyRC405
Dimensions
Cutting Diameter — in (DC)0.1811"
Cutting Diameter — mm (DC)4.6 mm
Overall Length — in (OAL)2.9134"
Overall Length — mm (OAL)74.0 mm
Flute Length — in (LCF)1.4173"
Flute Length — mm (LCF)36.0 mm
Length × Diameter Ratio16xJ
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Drill Point Angle (SIG)140°
Tool Information
ShankQueue cylindrique DIN 6535 HA
Through Coolant Yes
StandardDIN 6537
Reference Numbers
EDP Number8882121
EAN3603607342152
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Usage principal
N — Non-Ferrous Metals Utilisation possible
S — High Temperature Alloys Usage principal
File Type Download
RC4054.6 — 3D Model STP Download
RC4054.6 — 2D Model DXF Download
RC4054.6 — Line Drawing PDF Download
