RC4055.9
RC4055.9
RC4055.9
RC4055.9

RC4055.9

UGC DOR8882152
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$153.21 CAD - $153.21 CAD
$153.21 CAD
$153.21 CAD - $153.21 CAD
$153.21 CAD

Vendu en lots de : 1

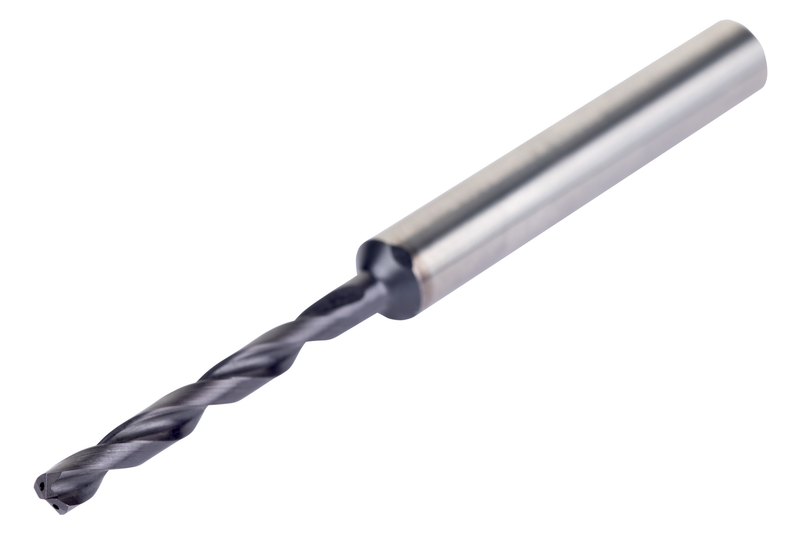

Le foret haute performance de 5,9 mm de diamètre de coupe est spécialement conçu pour offrir une qualité de trou supérieure à des vitesses et des avances élevées (tolérance de trou H9 pour les multimatériaux). Une pointe auto-centrante à 4 facettes et à 140° et une construction de goujure CTW. DCON MS 6 mm, LCF 44 mm et OAL 82 mm. Le revêtement supérieur TiAlN augmente la dureté de surface, améliore la résistance à l'usure et prolonge la durée de vie de l'outil. Le liquide de refroidissement interne améliore l'évacuation des copeaux.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)RC4055.9
GradeTiAlN/Sommet
Product Number8882152
Product FamilyRC405

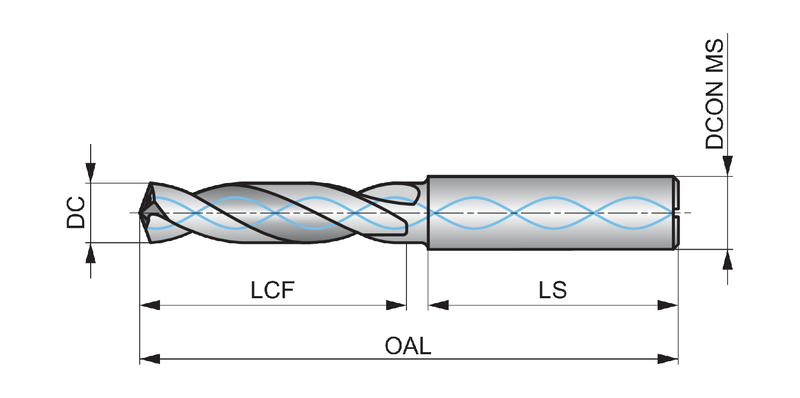

Dimensions
Cutting Diameter — in (DC)0.2323"
Cutting Diameter — mm (DC)5.9 mm
Overall Length — in (OAL)3.2283"
Overall Length — mm (OAL)82.0 mm
Flute Length — in (LCF)1.7323"
Flute Length — mm (LCF)44.0 mm
Length × Diameter Ratio14xD
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Drill Point Angle (SIG)140°
Tool Information
ShankQueue cylindrique DIN 6535 HA
Through Coolant Yes
StandardDIN 6537
Reference Numbers
EDP Number8882152
EAN3603607342466
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Usage principal
N — Non-Ferrous Metals Utilisation possible
S — High Temperature Alloys Usage principal
File Type Download
RC4055.9 — 3D Model STP Download
RC4055.9 — 2D Model DXF Download
RC4055.9 — Line Drawing PDF Download
