RC4057.7
RC4057.7
RC4057.7
RC4057.7

RC4057.7

UGC DOR8882190
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$180.71 CAD - $180.71 CAD
$180.71 CAD
$180.71 CAD - $180.71 CAD
$180.71 CAD

Vendu en lots de : 1

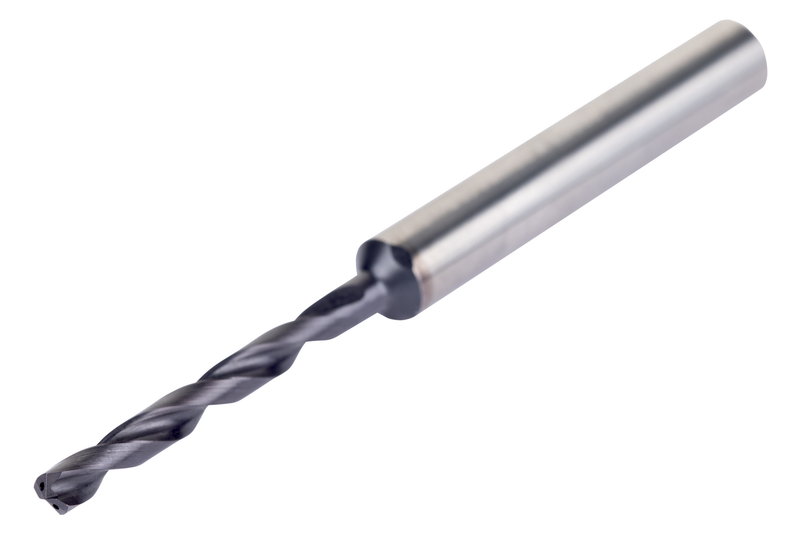

Le foret haute performance d’un diamètre de coupe de 7,7 mm est spécialement conçu pour offrir une qualité de trou supérieure à des vitesses et des avances élevées (tolérance de trou H9 pour les matériaux multiples). Une pointe de centrage automatique à 140° et 4 facettes, ainsi qu’une construction à cannelure CTW. DCON MS 8 mm, LCF 53 mm et OAL 91 mm. Le revêtement TiAlN-top augmente la dureté de surface, améliore la résistance à l’usure et prolonge la durée de vie de l’outil. Le lubrifiant interne améliore l’évacuation des copeaux.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)RC4057.7
GradeTiAlN/Sommet
Product Number8882190
Product FamilyRC405
Dimensions
Cutting Diameter — in (DC)0.3031"
Cutting Diameter — mm (DC)7.7 mm
Overall Length — in (OAL)3.5827"
Overall Length — mm (OAL)91.0 mm
Flute Length — in (LCF)2.0866"
Flute Length — mm (LCF)53.0 mm
Length × Diameter Ratio12xJ
Connection Dia. — in (DCON)0.315"
Connection Dia. — mm (DCON)8.0 mm
Drill Point Angle (SIG)140°
Tool Information
ShankQueue cylindrique DIN 6535 HA
Through Coolant Yes
StandardDIN 6537
Reference Numbers
EDP Number8882190
EAN3603607342848
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Usage principal
N — Non-Ferrous Metals Utilisation possible
S — High Temperature Alloys Usage principal
File Type Download
RC4057.7 — 3D Model STP Download
RC4057.7 — 2D Model DXF Download
RC4057.7 — Line Drawing PDF Download
