RC405J
RC405J
RC405J
RC405J

RC405J

UGC DOR8882177
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$180.71 CAD - $180.71 CAD
$180.71 CAD
$180.71 CAD - $180.71 CAD
$180.71 CAD

Vendu en lots de : 1

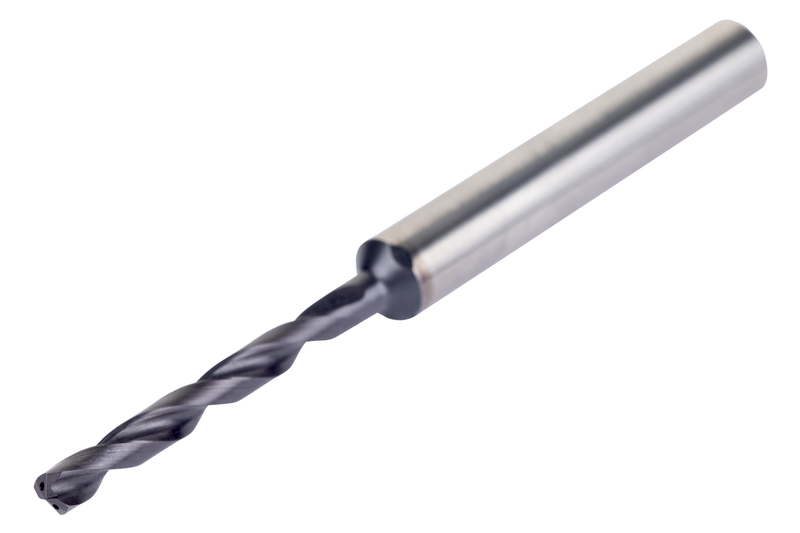

Le foret haute performance de diamètre de coupe J (0,2772 pouce) est spécifiquement conçu pour offrir une qualité de trou supérieure à des vitesses et des avances élevées (tolérance de trou H9 pour les matériaux multiples). Une pointe fendue auto-centrante à 4 facettes de 140° et une construction de goujures CTW. DCON MS 8 mm, LCF 53 mm et OAL 91 mm. Le revêtement TiAlN-top augmente la dureté de surface, améliore la résistance à l'usure et prolonge la durée de vie de l'outil. Le liquide de refroidissement interne améliore l'évacuation des copeaux.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)RC405J
GradeTiAlN/Top
Product Number8882177
Product FamilyRC405
Dimensions
Cutting Diameter — in (DC)0.2772"
Cutting Diameter — mm (DC)7.04 mm
Overall Length — in (OAL)3.5827"
Overall Length — mm (OAL)91.0 mm
Flute Length — in (LCF)2.0866"
Flute Length — mm (LCF)53.0 mm
Length × Diameter Ratio13xJ
Connection Dia. — in (DCON)0.315"
Connection Dia. — mm (DCON)8.0 mm
Drill Point Angle (SIG)140°
Tool Information
ShankQueue cylindrique DIN 6535 HA
Through Coolant Yes
StandardDIN 6537
Reference Numbers
EDP Number8882177
EAN3603607342718
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Usage principal
N — Non-Ferrous Metals Utilisation possible
S — High Temperature Alloys Usage principal
File Type Download
RC405J — 3D Model STP Download
RC405J — 2D Model DXF Download
RC405J — Line Drawing PDF Download
