RC40819/32
RC40819/32
RC40819/32
RC40819/32

RC40819/32

UGC DOR8882433
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$583.00 CAD - $583.00 CAD
$583.00 CAD
$583.00 CAD - $583.00 CAD
$583.00 CAD

Vendu en lots de : 1

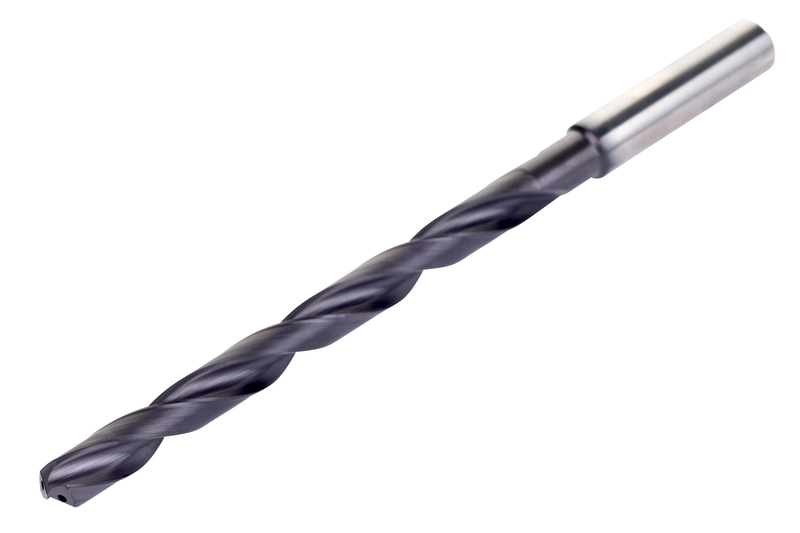

Le foret haute performance d'un diamètre de coupe de 15,08 mm est spécialement conçu pour offrir une qualité de trou supérieure à des vitesses et avances élevées (tolérance de trou H9 pour les multi-matériaux). Pointe auto-centrante à 140°, 4 facettes et géométrie de goujure CTW. DCON MS 16 mm, LCF 172 mm et OAL 227 mm. Le revêtement supérieur en TiAlN augmente la dureté de surface, améliore la résistance à l'usure et prolonge la durée de vie de l'outil. L'arrosage interne améliore l'évacuation des copeaux.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)RC40819/32
GradeTiAlN/Sommet
Product Number8882433
Product FamilyRC408
Dimensions
Cutting Diameter — in (DC)0.5938"
Cutting Diameter — mm (DC)15.08 mm
Cutting Diameter — Fractional19/32
Overall Length — in (OAL)8.937"
Overall Length — mm (OAL)227.0 mm
Flute Length — in (LCF)6.7717"
Flute Length — mm (LCF)172.0 mm
Length × Diameter Ratio15xD
Connection Dia. — in (DCON)0.6299"
Connection Dia. — mm (DCON)16.0 mm
Drill Point Angle (SIG)140°
Tool Information
ShankQueue cylindrique DIN 6535 HA
Through Coolant Yes
StandardNorme de travail
Reference Numbers
EDP Number8882433
EAN3603607345177
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Usage principal
N — Non-Ferrous Metals Usage possible
S — High Temperature Alloys Usage principal
File Type Download
RC40819/32 — 3D Model STP Download
RC40819/32 — 2D Model DXF Download
RC40819/32 — Line Drawing PDF Download
