RC40825/64
RC40825/64
RC40825/64
RC40825/64

RC40825/64

UGC DOR8882399
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$232.57 CAD - $232.57 CAD
$232.57 CAD
$232.57 CAD - $232.57 CAD
$232.57 CAD

Vendu en lots de : 1

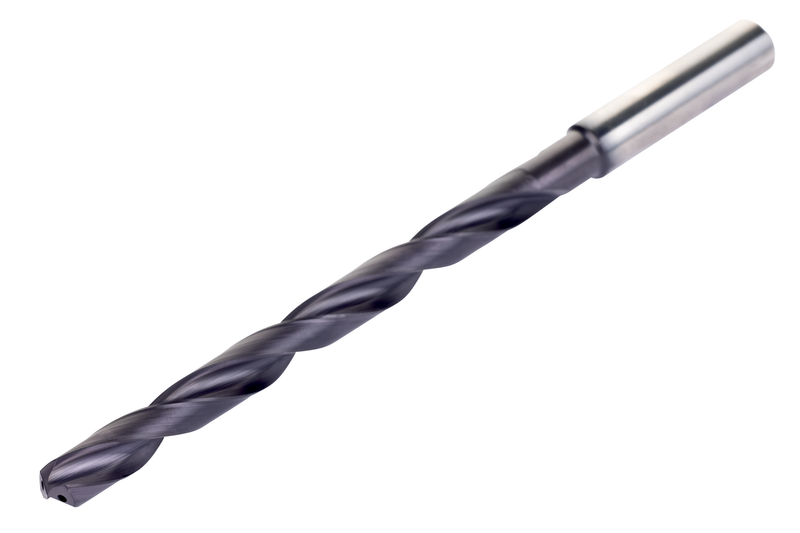

Foret haute performance de 25/64 pouces de diamètre de coupe, spécialement conçu pour offrir une qualité de trou supérieure à des vitesses et des avances élevées (tolérance de trou H9 pour les multi-matériaux). Une pointe auto-centrante à 140° à 4 facettes et une construction de goujure CTW. DCON MS 10 mm, LCF 106 mm et OAL 152 mm. Le revêtement supérieur en TiAlN augmente la dureté de surface, améliore la résistance à l'usure et prolonge la durée de vie de l'outil. Le liquide de refroidissement interne améliore l'évacuation des copeaux.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)RC40825/64
GradeTiAlN/Top
Product Number8882399
Product FamilyRC408
Dimensions
Cutting Diameter — in (DC)0.3906"
Cutting Diameter — mm (DC)9.92 mm
Cutting Diameter — Fractional25/64
Overall Length — in (OAL)5.9843"
Overall Length — mm (OAL)152.0 mm
Flute Length — in (LCF)4.1732"
Flute Length — mm (LCF)106.0 mm
Length × Diameter Ratio15xJ
Connection Dia. — in (DCON)0.3937"
Connection Dia. — mm (DCON)10.0 mm
Drill Point Angle (SIG)140°
Tool Information
ShankQueue cylindrique DIN 6535 HA
Through Coolant Yes
StandardNorme de travail
Reference Numbers
EDP Number8882399
EAN3603607344835
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Usage principal
N — Non-Ferrous Metals Utilisation possible
S — High Temperature Alloys Usage principal
File Type Download
RC40825/64 — 3D Model STP Download
RC40825/64 — 2D Model DXF Download
RC40825/64 — Line Drawing PDF Download
