UGC DOR8882321
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$150.86 CAD - $150.86 CAD
$150.86 CAD
$150.86 CAD - $150.86 CAD
$150.86 CAD

Vendu en lots de : 1

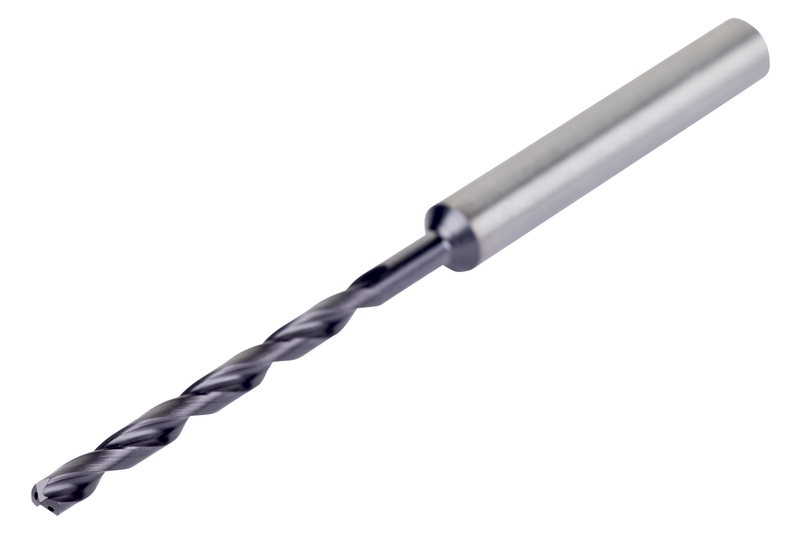

Ce foret haute performance de 3,7 mm de diamètre de coupe est spécialement conçu pour offrir une qualité de trou supérieure à des vitesses de coupe et des avances élevées (tolérance de trou H9 pour les matériaux multiples). Une pointe de centrage automatique à 140° à 4 facettes et une construction de goujure CTW. DCON MS 6 mm, LCF 37 mm et OAL 79 mm. Le revêtement supérieur TiAlN augmente la dureté de surface, améliore la résistance à l'usure et prolonge la durée de vie de l'outil. Le liquide de refroidissement interne améliore l'évacuation des copeaux.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)RC4083.7
GradeTiAlN/Sommet
Product Number8882321
Product FamilyRC408
Dimensions
Cutting Diameter — in (DC)0.1457"
Cutting Diameter — mm (DC)3.7 mm
Overall Length — in (OAL)3.1102"
Overall Length — mm (OAL)79.0 mm
Flute Length — in (LCF)1.4567"
Flute Length — mm (LCF)37.0 mm
Length × Diameter Ratio21xD
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Drill Point Angle (SIG)140°
Tool Information
ShankQueue cylindrique DIN 6535 HA
Through Coolant Yes
StandardNorme de travail
Reference Numbers
EDP Number8882321
EAN3603607344057
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Usage principal
N — Non-Ferrous Metals Usage possible
S — High Temperature Alloys Usage principal
File Type Download
RC4083.7 — 3D Model STP Download
RC4083.7 — 2D Model DXF Download
RC4083.7 — Line Drawing PDF Download
