RC4083.8
RC4083.8
RC4083.8
RC4083.8

RC4083.8

UGC DOR8882322
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$150.86 CAD - $150.86 CAD
$150.86 CAD
$150.86 CAD - $150.86 CAD
$150.86 CAD

Vendu en lots de : 1

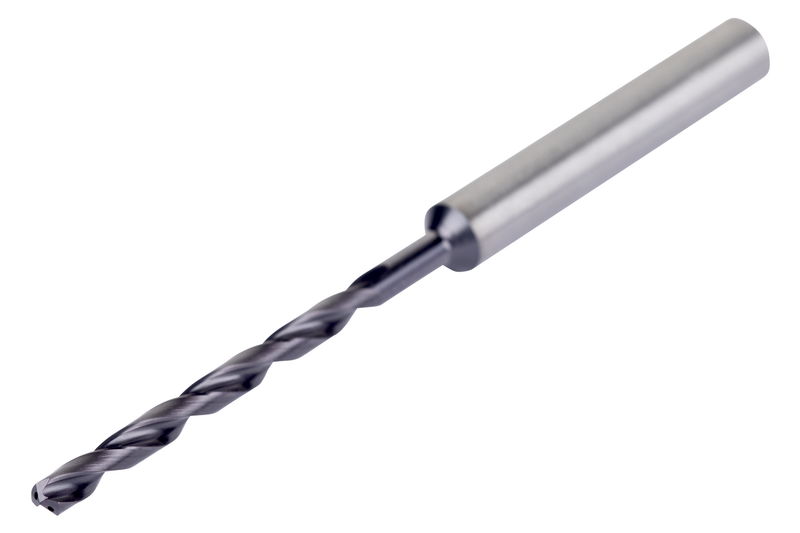

Ce foret haute performance d’un diamètre de coupe de 3,8 mm est spécifiquement conçu pour fournir une qualité de trou supérieure à des vitesses de coupe et d’avance élevées (tolérance de trou H9 pour les multi-matériaux). Il est doté d’une pointe auto-centrante à 4 facettes de 140° et d’une hélice CTW. DCON MS 6 mm, LCF 48 mm et OAL 90 mm. Le revêtement TiAlN-top augmente la dureté de surface, améliore la résistance à l’usure et prolonge la durée de vie de l’outil. L’arrosage interne améliore l’évacuation des copeaux.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)RC4083.8
GradeTiAlN/Sommet
Product Number8882322
Product FamilyRC408
Dimensions
Cutting Diameter — in (DC)0.1496"
Cutting Diameter — mm (DC)3.8 mm
Overall Length — in (OAL)3.5433"
Overall Length — mm (OAL)90.0 mm
Flute Length — in (LCF)1.8898"
Flute Length — mm (LCF)48.0 mm
Length × Diameter Ratio24xD
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Drill Point Angle (SIG)140°
Tool Information
ShankQueue cylindrique DIN 6535 HA
Through Coolant Yes
StandardNorme de travail
Reference Numbers
EDP Number8882322
EAN3603607344064
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Usage principal
N — Non-Ferrous Metals Utilisation possible
S — High Temperature Alloys Usage principal
File Type Download
RC4083.8 — 3D Model STP Download
RC4083.8 — 2D Model DXF Download
RC4083.8 — Line Drawing PDF Download
