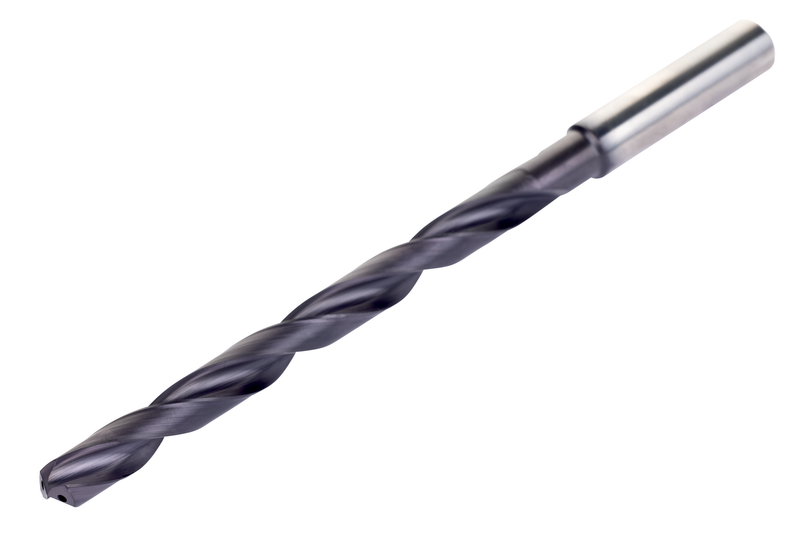

Cutting diameter 31/64 inches high-performance drill is specifically designed to deliver superior hole quality at high speeds and feeds (H9 hole tolerance for multi-materials). A 140° self-centering, 4-facet split point and CTW flute construction. DCON MS 14 mm, LCF 151 mm and OAL 202 mm. TiAlN-top coating increases surface hardness, enhances wear resistance, and extends tool life. Internal coolant enhances chip evacuation.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)RC40831/64
GradeTiAlN/Sommet
Product Number8882418
Product FamilyRC408
Dimensions
Cutting Diameter — in (DC)0.4844"
Cutting Diameter — mm (DC)12.3 mm
Cutting Diameter — Fractional31/64
Overall Length — in (OAL)7.9528"
Overall Length — mm (OAL)202.0 mm
Flute Length — in (LCF)5.9449"
Flute Length — mm (LCF)151.0 mm
Length × Diameter Ratio16xJ
Connection Dia. — in (DCON)0.5512"
Connection Dia. — mm (DCON)14.0 mm
Drill Point Angle (SIG)140°
Tool Information
ShankQueue cylindrique DIN 6535 HA
Through Coolant Yes
StandardNorme de travail
Reference Numbers
EDP Number8882418
EAN3603607345023
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Usage principal
N — Non-Ferrous Metals Utilisation possible
S — High Temperature Alloys Usage principal
File Type Download
RC40831/64 — 3D Model STP Download
RC40831/64 — 2D Model DXF Download
RC40831/64 — Line Drawing PDF Download
