RC40835/64
RC40835/64
RC40835/64
RC40835/64

RC40835/64

UGC DOR8882426
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$407.79 CAD - $407.79 CAD
$407.79 CAD
$407.79 CAD - $407.79 CAD
$407.79 CAD

Vendu en lots de : 1

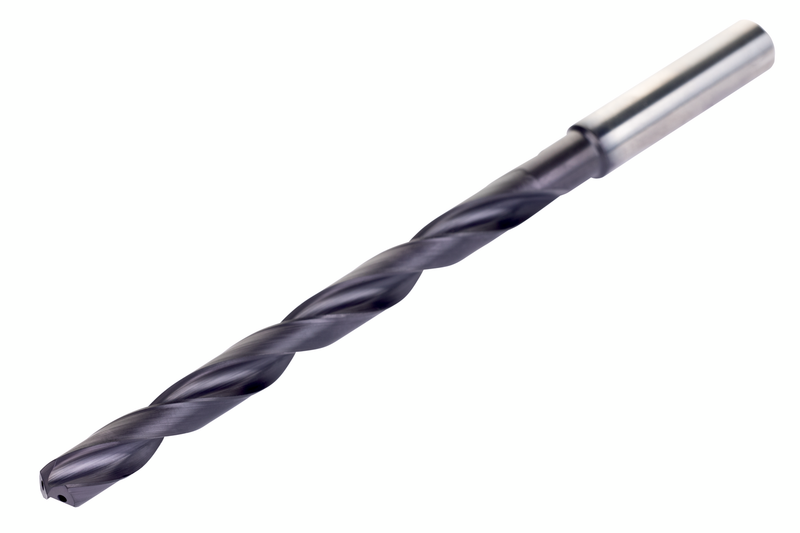

Le foret haute performance de 35/64 pouces de diamètre de coupe est spécialement conçu pour offrir une qualité de trou supérieure à des vitesses et des avances élevées (tolérance de trou H9 pour les multi-matériaux). Pointe auto-centrante à 4 facettes et à 140° et construction de goujures CTW. DCON MS 14 mm, LCF 151 mm et OAL 202 mm. Le revêtement supérieur en TiAlN augmente la dureté de la surface, améliore la résistance à l'usure et prolonge la durée de vie de l'outil. Le liquide de refroidissement interne améliore l'évacuation des copeaux.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)RC40835/64
GradeTiAlN/Sommet
Product Number8882426
Product FamilyRC408
Dimensions
Cutting Diameter — in (DC)0.5469"
Cutting Diameter — mm (DC)13.89 mm
Cutting Diameter — Fractional35/64
Overall Length — in (OAL)7.9528"
Overall Length — mm (OAL)202.0 mm
Flute Length — in (LCF)5.9449"
Flute Length — mm (LCF)151.0 mm
Length × Diameter Ratio15 fois D
Connection Dia. — in (DCON)0.5512"
Connection Dia. — mm (DCON)14.0 mm
Drill Point Angle (SIG)140°
Tool Information
ShankQueue cylindrique DIN 6535 HA
Through Coolant Yes
StandardNorme de travail
Reference Numbers
EDP Number8882426
EAN3603607345108
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Usage principal
N — Non-Ferrous Metals Utilisation possible
S — High Temperature Alloys Usage principal
File Type Download
RC40835/64 — 3D Model STP Download
RC40835/64 — 2D Model DXF Download
RC40835/64 — Line Drawing PDF Download
