RC4085/32
RC4085/32
RC4085/32
RC4085/32

RC4085/32

UGC DOR8882324
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$150.86 CAD - $150.86 CAD
$150.86 CAD
$150.86 CAD - $150.86 CAD
$150.86 CAD

Vendu en lots de : 1

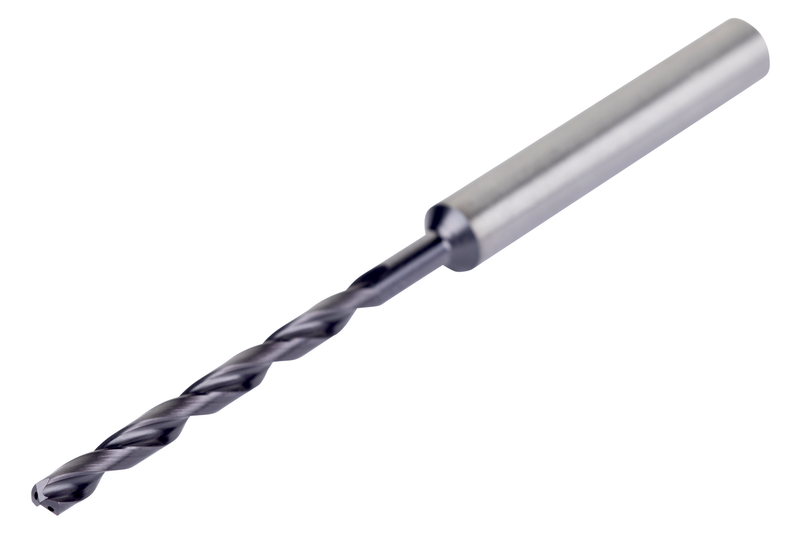

Un foret haute performance de 5/32 pouces de diamètre de coupe, spécialement conçu pour offrir une qualité de perçage supérieure à des vitesses et des avances élevées (tolérance de trou H9 pour multi-matériaux). Pointe auto-centrante à 140°, à 4 facettes et dépouille conique et construction d'hélice CTW. DCON MS 6 mm, LCF 48 mm et OAL 90 mm. Le revêtement TiAlN-top augmente la dureté de surface, améliore la résistance à l'usure et prolonge la durée de vie de l'outil. L'arrosage interne améliore l'évacuation des copeaux.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)RC4085/32
GradeTiAlN/Sommet
Product Number8882324
Product FamilyRC408
Dimensions
Cutting Diameter — in (DC)0.1563"
Cutting Diameter — mm (DC)3.97 mm
Cutting Diameter — Fractional5/32
Overall Length — in (OAL)3.5433"
Overall Length — mm (OAL)90.0 mm
Flute Length — in (LCF)1.8898"
Flute Length — mm (LCF)48.0 mm
Length × Diameter Ratio23xD
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Drill Point Angle (SIG)140°
Tool Information
ShankQueue cylindrique DIN 6535 HA
Through Coolant Yes
StandardNorme de travail
Reference Numbers
EDP Number8882324
EAN3603607344088
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Usage principal
N — Non-Ferrous Metals Utilisation possible
S — High Temperature Alloys Usage principal
File Type Download
RC4085/32 — 3D Model STP Download
RC4085/32 — 2D Model DXF Download
RC4085/32 — Line Drawing PDF Download
