RC4085.9
RC4085.9
RC4085.9
RC4085.9

RC4085.9

UGC DOR8882348
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$163.43 CAD - $163.43 CAD
$163.43 CAD
$163.43 CAD - $163.43 CAD
$163.43 CAD

Vendu en lots de : 1

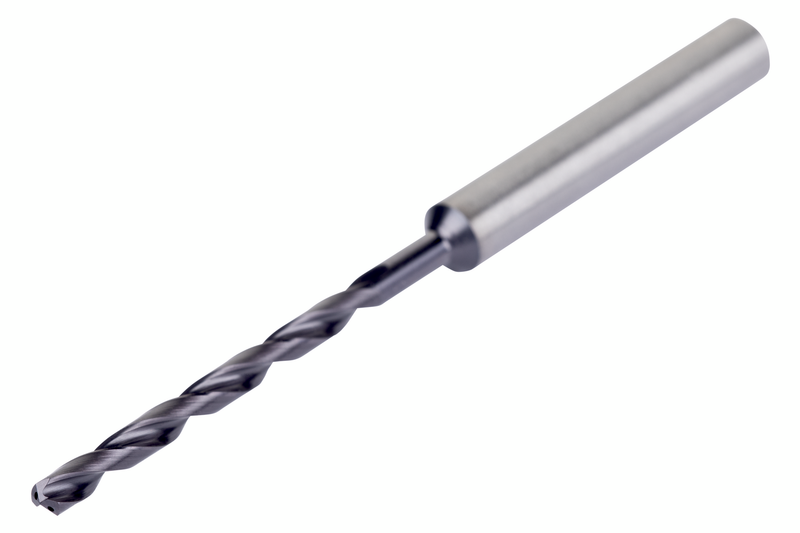

Le foret haute performance de diamètre de coupe de 5,9 mm est spécialement conçu pour offrir une qualité de trou supérieure à des vitesses et des avances élevées (tolérance de trou H9 pour les multi-matériaux). Pointe auto-centrante à 140°, 4 facettes et construction de goujure CTW. DCON MS 6 mm, LCF 62 mm et OAL 104 mm. Le revêtement supérieur en TiAlN augmente la dureté de surface, améliore la résistance à l'usure et prolonge la durée de vie de l'outil. Le liquide de refroidissement interne améliore l'évacuation des copeaux.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)RC4085.9
GradeTiAlN/Top
Product Number8882348
Product FamilyRC408
Dimensions
Cutting Diameter — in (DC)0.2323"
Cutting Diameter — mm (DC)5.9 mm
Overall Length — in (OAL)4.0945"
Overall Length — mm (OAL)104.0 mm
Flute Length — in (LCF)2.4409"
Flute Length — mm (LCF)62.0 mm
Length × Diameter Ratio18xH
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Drill Point Angle (SIG)140°
Tool Information
ShankQueue cylindrique DIN 6535 HA
Through Coolant Yes
StandardNorme de travail
Reference Numbers
EDP Number8882348
EAN3603607344323
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Usage principal
N — Non-Ferrous Metals Utilisation possible
S — High Temperature Alloys Usage principal
File Type Download
RC4085.9 — 3D Model STP Download
RC4085.9 — 2D Model DXF Download
RC4085.9 — Line Drawing PDF Download
