RC4087.1
RC4087.1
RC4087.1
RC4087.1

RC4087.1

UGC DOR8882363
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$192.50 CAD - $192.50 CAD
$192.50 CAD
$192.50 CAD - $192.50 CAD
$192.50 CAD

Vendu en lots de : 1

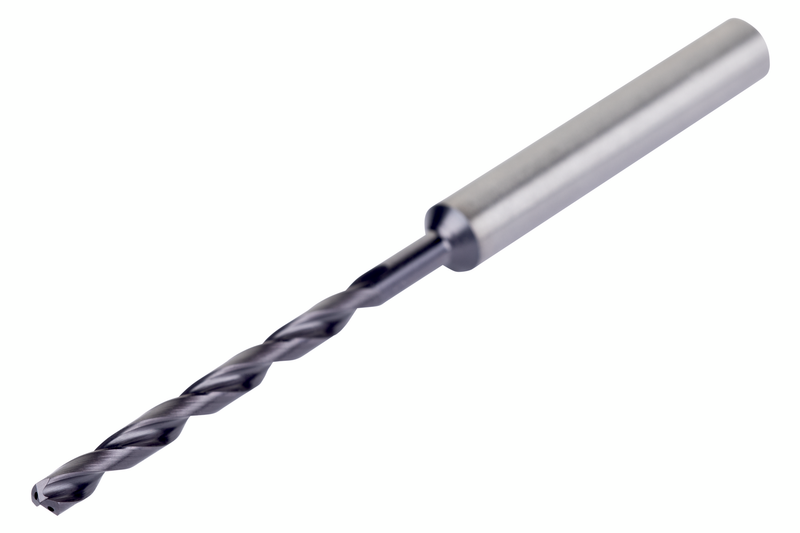

Foret haute performance de 7,1 mm de diamètre de coupe, spécialement conçu pour offrir une qualité de trou supérieure à des vitesses et des avances élevées (tolérance de trou H9 pour matériaux multiples). Pointe auto-centrante à 140°, 4 facettes et construction de goujures CTW. DCON MS 8 mm, LCF 84 mm et OAL 126 mm. Le revêtement supérieur en TiAlN augmente la dureté de surface, améliore la résistance à l'usure et prolonge la durée de vie de l'outil. Le liquide de refroidissement interne améliore l'évacuation des copeaux.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)RC4087.1
GradeTiAlN/Sommet
Product Number8882363
Product FamilyRC408
Dimensions
Cutting Diameter — in (DC)0.2795"
Cutting Diameter — mm (DC)7.1 mm
Overall Length — in (OAL)4.9606"
Overall Length — mm (OAL)126.0 mm
Flute Length — in (LCF)3.3071"
Flute Length — mm (LCF)84.0 mm
Length × Diameter Ratio18xD
Connection Dia. — in (DCON)0.315"
Connection Dia. — mm (DCON)8.0 mm
Drill Point Angle (SIG)140°
Tool Information
ShankQueue cylindrique DIN 6535 HA
Through Coolant Yes
StandardNorme de travail
Reference Numbers
EDP Number8882363
EAN3603607344477
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Usage principal
N — Non-Ferrous Metals Utilisation possible
S — High Temperature Alloys Usage principal
File Type Download
RC4087.1 — 3D Model STP Download
RC4087.1 — 2D Model DXF Download
RC4087.1 — Line Drawing PDF Download
