RC4087/16
RC4087/16
RC4087/16
RC4087/16

RC4087/16

UGC DOR8882409
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$319.79 CAD - $319.79 CAD
$319.79 CAD
$319.79 CAD - $319.79 CAD
$319.79 CAD

Vendu en lots de : 1

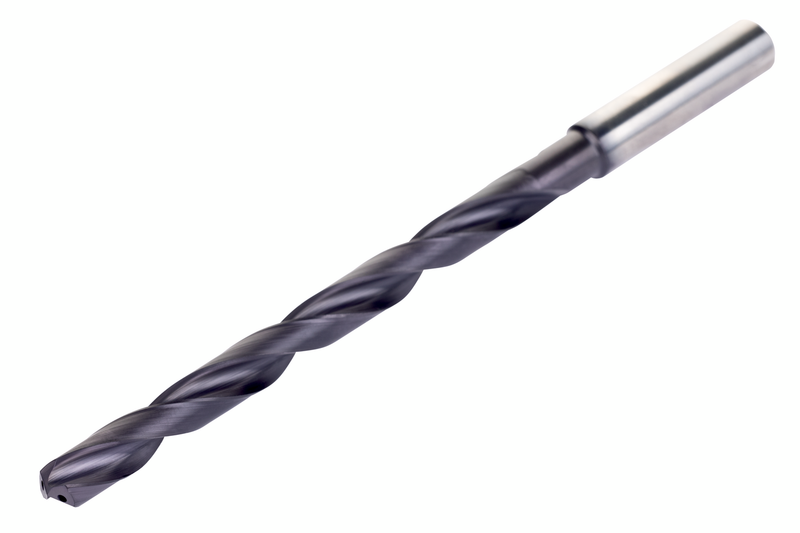

Cutting diameter 7/16 inches high-performance drill is specifically designed to deliver superior hole quality at high speeds and feeds (H9 hole tolerance for multi-materials). A 140° self-centering, 4-facet split point and CTW flute construction. DCON MS 12 mm, LCF 128 mm and OAL 180 mm. TiAlN-top coating increases surface hardness, enhances wear resistance, and extends tool life. Internal coolant enhances chip evacuation.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)RC4087/16
GradeTiAlN/Sommet
Product Number8882409
Product FamilyRC408
Dimensions
Cutting Diameter — in (DC)0.4375"
Cutting Diameter — mm (DC)11.11 mm
Cutting Diameter — Fractional16/7
Overall Length — in (OAL)7.0866"
Overall Length — mm (OAL)180.0 mm
Flute Length — in (LCF)5.0394"
Flute Length — mm (LCF)128.0 mm
Length × Diameter Ratio16xR
Connection Dia. — in (DCON)0.4724"
Connection Dia. — mm (DCON)12.0 mm
Drill Point Angle (SIG)140°
Tool Information
ShankQueue cylindrique DIN 6535 HA
Through Coolant Yes
StandardNorme de travail
Reference Numbers
EDP Number8882409
EAN3603607344934
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Usage principal
N — Non-Ferrous Metals Utilisation possible
S — High Temperature Alloys Usage principal
File Type Download
RC4087/16 — 3D Model STP Download
RC4087/16 — 2D Model DXF Download
RC4087/16 — Line Drawing PDF Download
