RC4089.1
RC4089.1
RC4089.1
RC4089.1

RC4089.1

UGC DOR8882388
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$232.57 CAD - $232.57 CAD
$232.57 CAD
$232.57 CAD - $232.57 CAD
$232.57 CAD

Vendu en lots de : 1

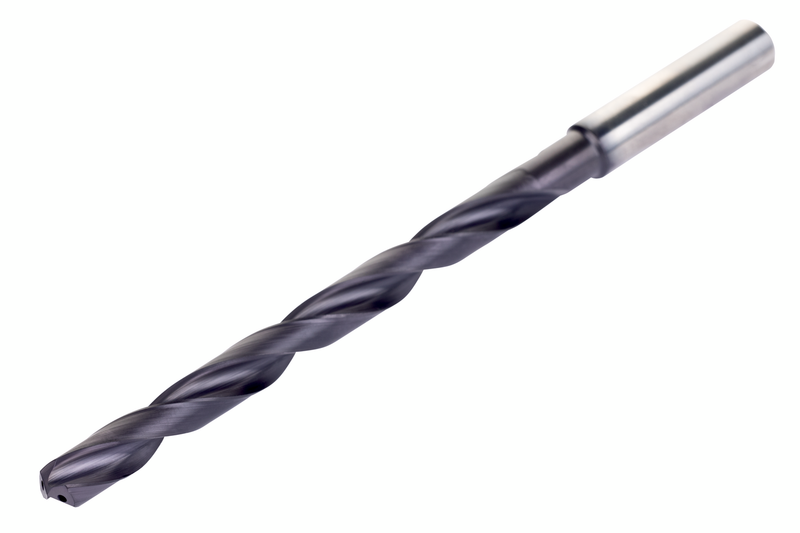

La perceuse haute performance de 9,1 mm de diamètre de coupe est spécifiquement conçue pour fournir une qualité de trou supérieure à des vitesses et des avances élevées (tolérance de trou H9 pour les multi-matériaux). Une pointe auto-centrante à 140°, 4 facettes fendues et une construction de goujure CTW. DCON MS 10 mm, LCF 106 mm et OAL 152 mm. Le revêtement TiAlN-top augmente la dureté de surface, améliore la résistance à l'usure et prolonge la durée de vie de l'outil. Le liquide de refroidissement interne améliore l'évacuation des copeaux.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)RC4089.1
GradeTiAlN/Sommet
Product Number8882388
Product FamilyRC408
Dimensions
Cutting Diameter — in (DC)0.3583"
Cutting Diameter — mm (DC)9.1 mm
Overall Length — in (OAL)5.9843"
Overall Length — mm (OAL)152.0 mm
Flute Length — in (LCF)4.1732"
Flute Length — mm (LCF)106.0 mm
Length × Diameter Ratio17xP
Connection Dia. — in (DCON)0.3937"
Connection Dia. — mm (DCON)10.0 mm
Drill Point Angle (SIG)140°
Tool Information
ShankQueue cylindrique DIN 6535 HA
Through Coolant Yes
StandardNorme de travail
Reference Numbers
EDP Number8882388
EAN3603607344729
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Usage principal
N — Non-Ferrous Metals Utilisation possible
S — High Temperature Alloys Usage principal
File Type Download
RC4089.1 — 3D Model STP Download
RC4089.1 — 2D Model DXF Download
RC4089.1 — Line Drawing PDF Download
