RCMT 1606MOS-37:T9425
RCMT 1606MOS-37:T9425
RCMT 1606MOS-37:T9425
RCMT 1606MOS-37:T9425

RCMT 1606MOS-37:T9425

UGC DOR8986014
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$27.97 CAD - $27.97 CAD
$27.97 CAD
$27.97 CAD - $27.97 CAD
$27.97 CAD

Vendu en lots de : 10
Plaquette de tournage positive simple face, R - ronde, taille 16 avec un rayon de coin de [ISO_CornerRadius_MET_NUM] mm. Combinaison de la géométrie brise-copeaux 37 pour l'usinage semi-ébauche à ébauche lourde, et des coupes continues à interrompues. et substrat à gradient fonctionnel T9425, revêtu MT-CVD, conçu principalement pour les matériaux du groupe P. Convient aux matériaux : P - Acier et acier moulé (aciers à teneur en alliage ≤ 10% et une dureté < 45HRC), K - Fonte (moulages de fer et d'alliages de carbone avec > 2% de teneur en carbone) et coupe interrompue.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)RCMT 1606MOS-37:T9425
GradeT9425
Chipbreaker (CBMD)37
Product Number8986014
Product FamilyCMRÉ
Insert Geometry
Insert DesignRCMT
Insert Shape Code (SC)R - arrondi
Insert Geometry
Insert Thickness — in (S)0.25"
Insert Thickness — mm (S)6.35 mm
Depth of Cut Max — in (APMX)0.157"
Depth of Cut Max — mm (APMX)4.0 mm
Tool Information
Tool DesignRC
SubstrateSubstrat à gradient fonctionnel
Reference Numbers
EDP Number8986014
EAN3603604778190
Material Group Suitability
P — Steel and Cast Steel Usage principal
K — Cast Iron Usage principal
File Type Download

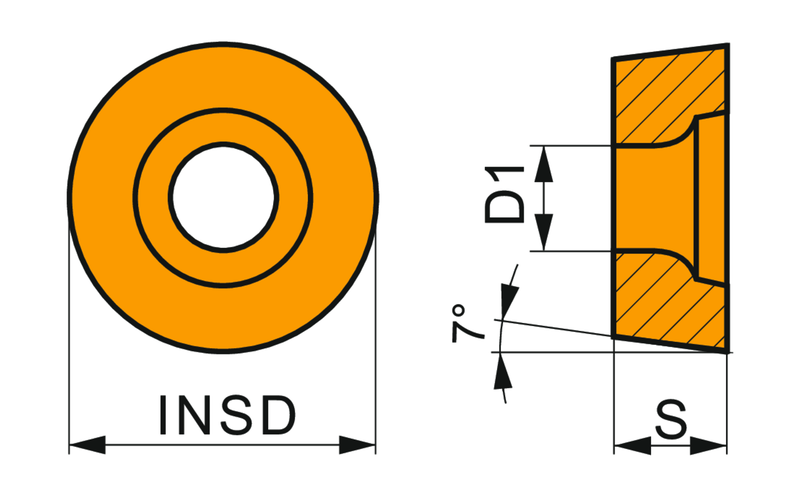

RCMT 1606MOS-37:T9425 — Line Drawing PDF Download
