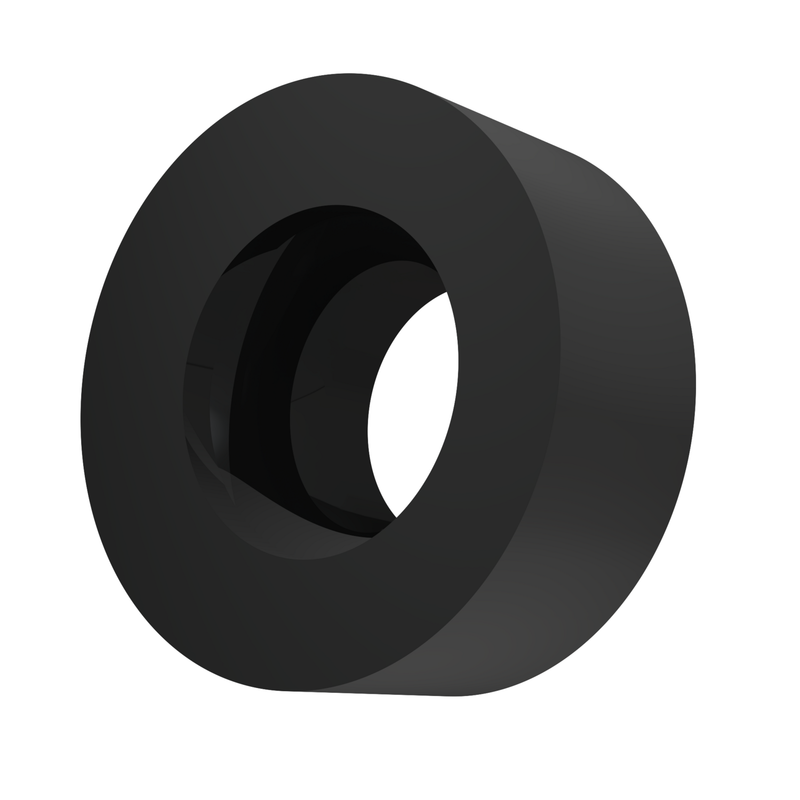

RCMW 0803MO:T5405
RCMW 0803MO:T5405
RCMW 0803MO:T5405
RCMW 0803MO:T5405

RCMW 0803MO:T5405

UGC DOR8985037
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$11.40 CAD - $11.40 CAD
$11.40 CAD
$11.40 CAD - $11.40 CAD
$11.40 CAD

Vendu en lots de : 10

Plaquette de tournage positive simple face, R - ronde, taille 8 avec rayon de bec de [ISO_CornerRadius_MET_NUM] mm. L'insert plat de brise-copeaux combiné .CMW est conçu pour l'usinage moyen des fontes. Il présente un angle de coupe neutre sans T-land. Il convient également sous conditions aux matériaux durs. Le substrat T5405 en WC-Co, revêtu MT-CVD, convient aux matériaux : K - Fonte (moulages de fer et d'alliages de carbone avec > 2 % de teneur en carbone) et aux coupes légèrement interrompues.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)RCMW 0803MO:T5405
GradeT5405
Chipbreaker (CBMD)Sans brise-copeaux
Product Number8985037
Product FamilyRCMO
Insert Geometry
Insert DesignCRMW
Insert Shape Code (SC)R - arrondi
Insert Geometry
Insert Thickness — in (S)0.125"
Insert Thickness — mm (S)3.18 mm
Depth of Cut Max — in (APMX)0.079"
Depth of Cut Max — mm (APMX)2.0 mm
Tool Information
Tool DesignRC
SubstrateSubstrat à base de WC-Co
Reference Numbers
EDP Number8985037
EAN3603604774444
Material Group Suitability
K — Cast Iron Usage principal
File Type Download

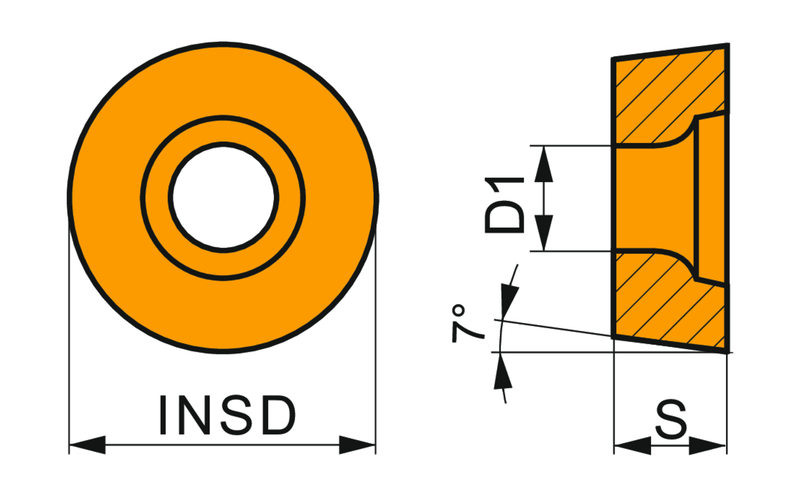

RCMW 0803MO:T5405 — Line Drawing PDF Download
