RCMW 10T3MO:T5405
RCMW 10T3MO:T5405
RCMW 10T3MO:T5405
RCMW 10T3MO:T5405

RCMW 10T3MO:T5405

UGC DOR8985038
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$12.54 CAD - $12.54 CAD
$12.54 CAD
$12.54 CAD - $12.54 CAD
$12.54 CAD

Vendu en lots de : 10

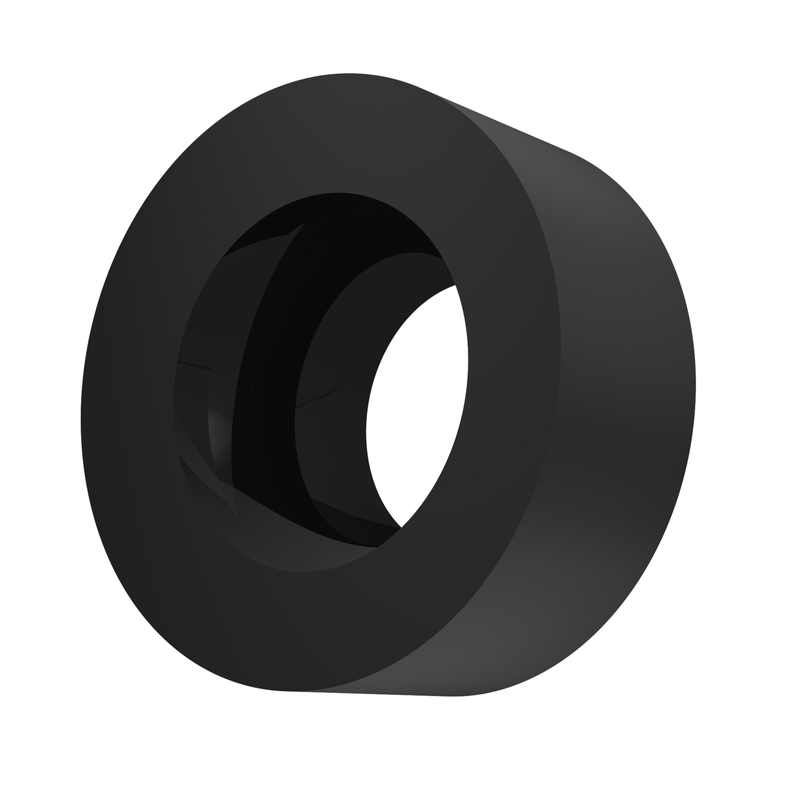

Plaquette de tournage positive à simple face, R - ronde, taille 10 avec un rayon de coin de [ISO_CornerRadius_MET_NUM] mm. La combinaison de brise-copeaux .CMW et la plaquette plate est conçue pour l'usinage moyen des fontes. Elle présente un angle de coupe neutre sans T-land. Elle convient également de manière conditionnelle aux matériaux durs. Et un substrat T5405 en WC-Co revêtu de MT-CVD. Convient aux matériaux : K - Fonte (moulages d'alliages de fer et de carbone avec > 2 % de teneur en carbone) et coupe légèrement interrompue.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)RCMW 10T3MO:T5405
GradeT5405
Chipbreaker (CBMD)Sans brise-copeaux
Product Number8985038
Product FamilyCRMC
Insert Geometry
Insert DesignCMRF
Insert Shape Code (SC)R - tour
Insert Geometry
Insert Thickness — in (S)0.156"
Insert Thickness — mm (S)3.97 mm
Depth of Cut Max — in (APMX)0.098"
Depth of Cut Max — mm (APMX)2.5 mm
Tool Information
Tool DesignRC
SubstrateSubstrat à base de WC-Co
Reference Numbers
EDP Number8985038
EAN3603604774451
Material Group Suitability
K — Cast Iron Usage principal
File Type Download

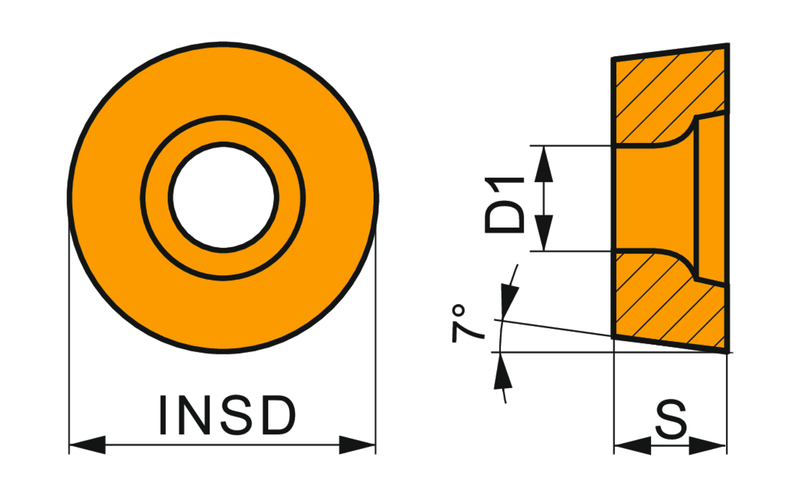

RCMW 10T3MO:T5405 — Line Drawing PDF Download
