RCMW 1204MO:T5405
RCMW 1204MO:T5405
RCMW 1204MO:T5405
RCMW 1204MO:T5405

RCMW 1204MO:T5405

UGC DOR8985039
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$14.79 CAD - $14.79 CAD
$14.79 CAD
$14.79 CAD - $14.79 CAD
$14.79 CAD

Vendu en lots de : 10

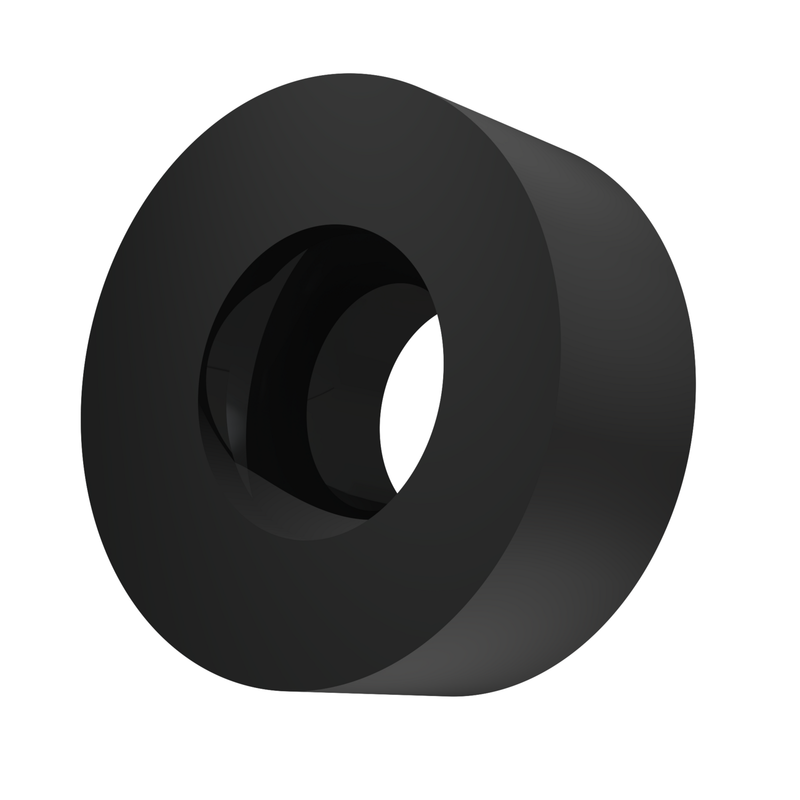

Plaquette de tournage positive simple face, R – ronde, taille 12 avec rayon de bec de [ISO_CornerRadius_MET_NUM] mm. La combinaison de brise-copeaux .CMW plat est conçue pour l'usinage moyen de la fonte. Elle présente un angle de coupe neutre sans plage de dégagement. Elle convient également de manière conditionnelle aux matériaux durs. Et le substrat T5405 à revêtement MT-CVD, à base de WC-Co, convient aux matériaux : K - Fonte (moulages de fer et d'alliages de carbone avec > 2 % de teneur en carbone) et coupe légèrement interrompue.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)RCMW 1204MO:T5405
GradeT5405
Chipbreaker (CBMD)Pas de brise-copeaux
Product Number8985039
Product FamilyCMRP
Insert Geometry
Insert DesignCMRW
Insert Shape Code (SC)R - rond
Insert Geometry
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Depth of Cut Max — in (APMX)0.118"
Depth of Cut Max — mm (APMX)3.0 mm
Tool Information
Tool DesignRC
SubstrateSubstrat à base de WC-Co
Reference Numbers
EDP Number8985039
EAN3603604774468
Material Group Suitability
K — Cast Iron Usage principal
File Type Download
RCMW 1204MO:T5405 — Line Drawing PDF Download
