RNMG 43-08:T9425
RNMG 43-08:T9425
RNMG 43-08:T9425
RNMG 43-08:T9425

RNMG 43-08:T9425

UGC DOR8985661
par Dormer Pramet
Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$12.40 CAD - $12.40 CAD
$12.40 CAD
$12.40 CAD - $12.40 CAD
$12.40 CAD

Vendu en lots de : 10

Plaquette négative double face, R - ronde, taille 12 avec rayon de bec de [ISO_CornerRadius_MET_NUM] mm. Combinaison de la géométrie brise-copeaux 08 pour l'usinage semi-ébauche à ébauche lourde, et des coupes continues à interrompues. et substrat à gradient fonctionnel T9425 revêtu MT-CVD, principalement conçu pour les matériaux du groupe P. Convient aux matériaux : [MA3] et coupe continue.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)RNMG 43-08:T9425
GradeT9425
Chipbreaker (CBMD)8
Product Number8985661
Product FamilyRNMG
Insert Geometry
Insert DesignRMNG
Insert Shape Code (SC)R - rond
Insert Geometry
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Depth of Cut Max — in (APMX)0.189"
Depth of Cut Max — mm (APMX)4.8 mm
Tool Information
Tool DesignInfirmière autorisée
SubstrateSubstrat à gradient fonctionnel
Reference Numbers
EDP Number8985661
EAN3603604775199
Material Group Suitability
P — Steel and Cast Steel Utilisation possible
K — Cast Iron Utilisation possible
File Type Download

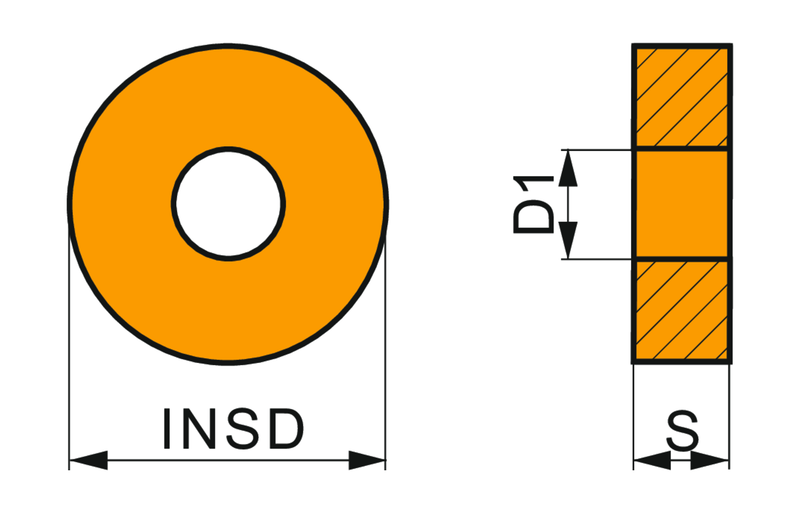

RNMG 43-08:T9425 — Line Drawing PDF Download
