RNMG 540-08:T5405
RNMG 540-08:T5405
RNMG 540-08:T5405
RNMG 540-08:T5405

RNMG 540-08:T5405

UGC DOR8984974
par Dormer Pramet
Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$20.50 CAD - $20.50 CAD
$20.50 CAD
$20.50 CAD - $20.50 CAD
$20.50 CAD

Vendu en lots de : 10

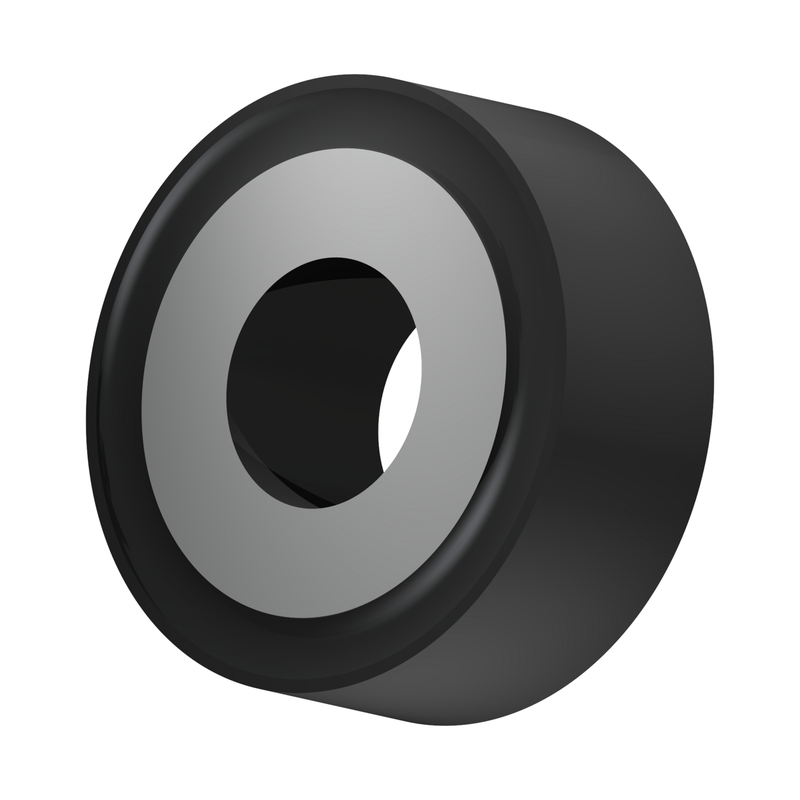

Plaquette négative double face, R - ronde, taille 15 avec rayon de bec [ISO_CornerRadius_MET_NUM] mm. Combinaison de la géométrie brise-copeaux 08 pour l'usinage semi-ébauche à ébauche lourde, et de coupes continues à interrompues. Et du substrat T5405 en WC-Co revêtu MT-CVD. Convient aux matériaux : [MA3] et à la coupe continue.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)RNMG 540-08:T5405
GradeT5405
Chipbreaker (CBMD)8
Product Number8984974
Product FamilyRNMG
Insert Geometry
Insert DesignRNMG
Insert Shape Code (SC)R - tour
Insert Geometry
Insert Thickness — in (S)0.25"
Insert Thickness — mm (S)6.35 mm
Depth of Cut Max — in (APMX)0.236"
Depth of Cut Max — mm (APMX)6.0 mm
Tool Information
Tool DesignInfirmière autorisée
SubstrateSubstrat à base de WC-Co
Reference Numbers
EDP Number8984974
EAN3603604772815
Material Group Suitability
P — Steel and Cast Steel Utilisation possible
K — Cast Iron Utilisation possible
File Type Download

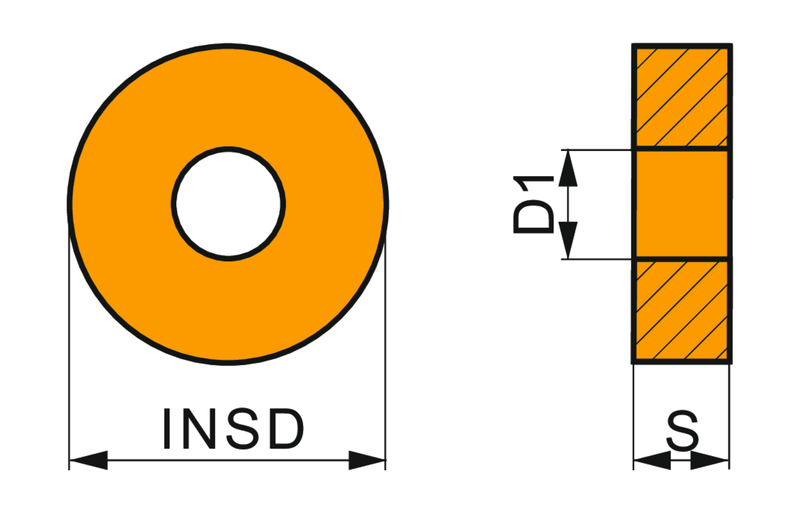

RNMG 540-08:T5405 — Line Drawing PDF Download
