RS40311/32
RS40311/32
RS40311/32
RS40311/32

RS40311/32

UGC DOR8881566
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$128.07 CAD - $128.07 CAD
$128.07 CAD
$128.07 CAD - $128.07 CAD
$128.07 CAD

Vendu en lots de : 1

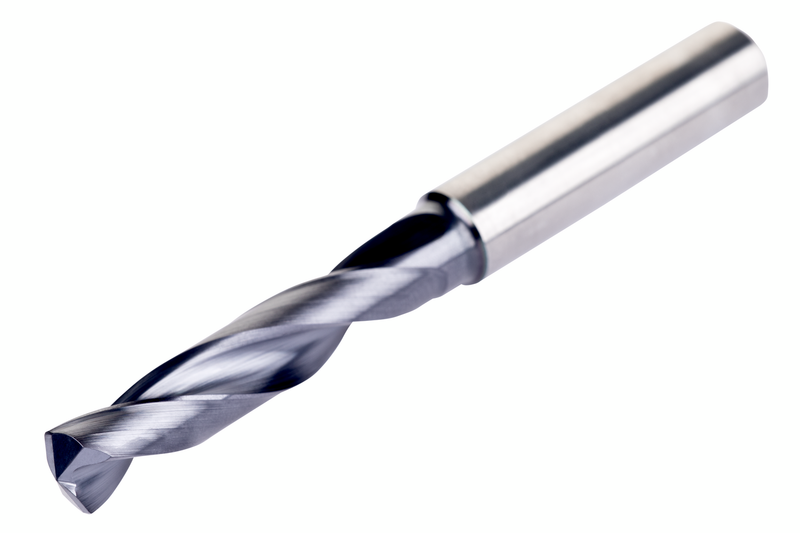

Le foret haute performance d'un diamètre de coupe de 11/32 pouces est spécialement conçu pour offrir une qualité de trou supérieure à des vitesses et des avances élevées (tolérance de trou H9 pour les multi-matériaux). Pointe fendue autocentrante à 140° et 4 facettes, et construction de cannelure CTW. DCON MS 10 mm, LCF 47 mm et OAL 89 mm. Le revêtement supérieur en TiAlN augmente la dureté de surface, améliore la résistance à l'usure et prolonge la durée de vie de l'outil.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)RS40311/32
GradeTiAlN/Sommet
Product Number8881566
Product FamilyRS403
Dimensions
Cutting Diameter — in (DC)0.3438"
Cutting Diameter — mm (DC)8.73 mm
Cutting Diameter — Fractional11/32
Overall Length — in (OAL)3.5039"
Overall Length — mm (OAL)89.0 mm
Flute Length — in (LCF)1.8504"
Flute Length — mm (LCF)47.0 mm
Length × Diameter Ratio10x plus grand
Connection Dia. — in (DCON)0.3937"
Connection Dia. — mm (DCON)10.0 mm
Drill Point Angle (SIG)140°
Tool Information
ShankQueue cylindrique DIN 6535 HA
Through Coolant No
StandardDIN 6537
Reference Numbers
EDP Number8881566
EAN3603607336601
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Utilisation possible
K — Cast Iron Usage principal
N — Non-Ferrous Metals Utilisation possible
S — High Temperature Alloys Utilisation possible
File Type Download
RS40311/32 — 3D Model STP Download
RS40311/32 — 2D Model DXF Download
RS40311/32 — Line Drawing PDF Download
