UGC DOR8881630
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$225.50 CAD - $225.50 CAD
$225.50 CAD
$225.50 CAD - $225.50 CAD
$225.50 CAD

Vendu en lots de : 1

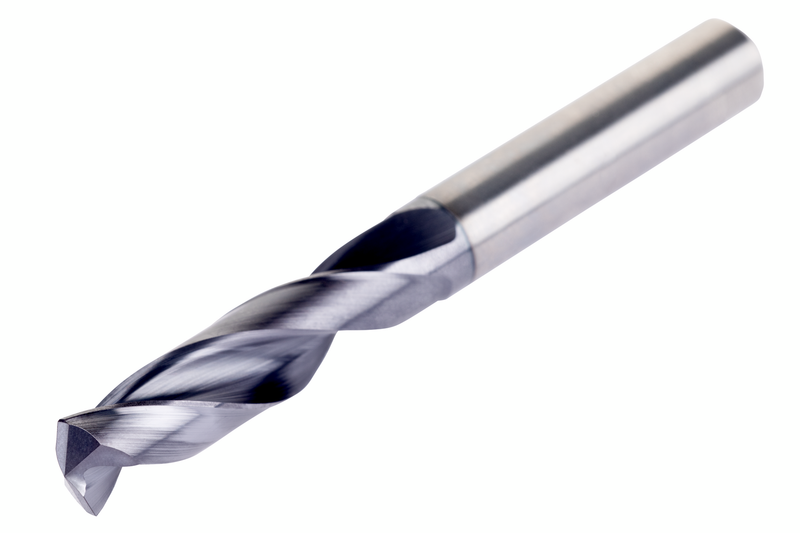

Le foret haute performance de 14 mm de diamètre de coupe est spécialement conçu pour offrir une qualité de trou supérieure à des vitesses et avances élevées (tolérance de trou H9 pour les multi-matériaux). Pointe auto-centrante à 4 facettes et 140° et hélice CTW. Tige parallèle avec DCON MS 14 mm, LCF 60 mm et OAL 107 mm. Le revêtement supérieur TiAlN augmente la dureté de surface, améliore la résistance à l'usure et prolonge la durée de vie de l'outil.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)RS40314.0
GradeTiAlN/Sommet
Product Number8881630
Product FamilyRS403
Dimensions
Cutting Diameter — in (DC)0.5512"
Cutting Diameter — mm (DC)14.0 mm
Overall Length — in (OAL)4.2126"
Overall Length — mm (OAL)107.0 mm
Flute Length — in (LCF)2.3622"
Flute Length — mm (LCF)60.0 mm
Length × Diameter Ratio8xR
Connection Dia. — in (DCON)0.5512"
Connection Dia. — mm (DCON)14.0 mm
Drill Point Angle (SIG)140°
Tool Information
ShankQueue cylindrique DIN 6535 HA
Through Coolant No
StandardDIN 6537
Reference Numbers
EDP Number8881630
EAN3603607337240
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage possible
K — Cast Iron Usage principal
N — Non-Ferrous Metals Utilisation possible
S — High Temperature Alloys Usage possible
File Type Download
RS40314.0 — 3D Model STP Download
RS40314.0 — 2D Model DXF Download
RS40314.0 — Line Drawing PDF Download
