UGC DOR8881641
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$323.71 CAD - $323.71 CAD
$323.71 CAD
$323.71 CAD - $323.71 CAD
$323.71 CAD

Vendu en lots de : 1

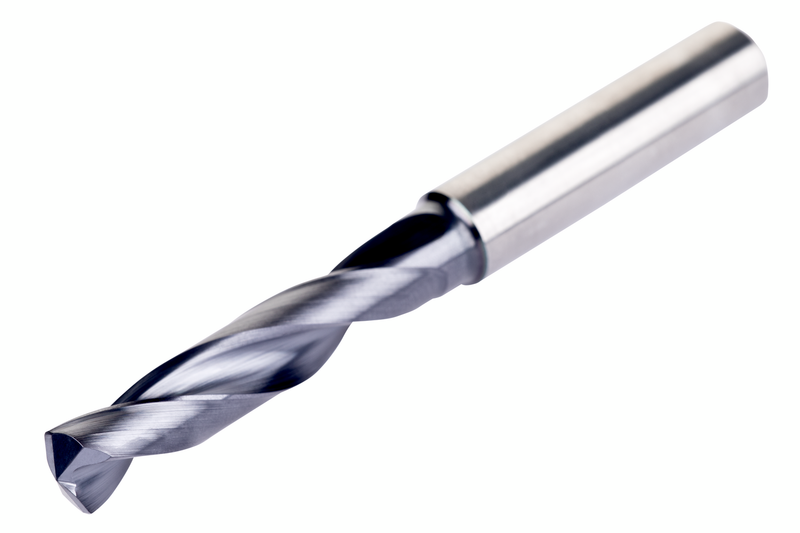

Le foret haute performance d'un diamètre de coupe de 15,5 mm est spécialement conçu pour offrir une qualité de trou supérieure à des vitesses et des avances élevées (tolérance de trou H9 pour multi-matériaux). Pointe auto-centrante à 4 facettes de 140° et hélice CTW. DCON MS 16 mm, LCF 65 mm et OAL 115 mm. Le revêtement supérieur TiAlN augmente la dureté de surface, améliore la résistance à l'usure et prolonge la durée de vie de l'outil.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)RS40315.5
GradeTiAlN/Sommet
Product Number8881641
Product FamilyRS403
Dimensions
Cutting Diameter — in (DC)0.6102"
Cutting Diameter — mm (DC)15.5 mm
Overall Length — in (OAL)4.5276"
Overall Length — mm (OAL)115.0 mm
Flute Length — in (LCF)2.5591"
Flute Length — mm (LCF)65.0 mm
Length × Diameter Ratio7xD
Connection Dia. — in (DCON)0.6299"
Connection Dia. — mm (DCON)16.0 mm
Drill Point Angle (SIG)140°
Tool Information
ShankQueue cylindrique DIN 6535 HA
Through Coolant No
StandardDIN 6537
Reference Numbers
EDP Number8881641
EAN3603607337356
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Utilisation possible
K — Cast Iron Usage principal
N — Non-Ferrous Metals Usage possible
S — High Temperature Alloys Utilisation possible
File Type Download
RS40315.5 — 3D Model STP Download
RS40315.5 — 2D Model DXF Download
RS40315.5 — Line Drawing PDF Download
