RS40319.5
RS40319.5
RS40319.5
RS40319.5

RS40319.5

UGC DOR8881660
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$524.07 CAD - $524.07 CAD
$524.07 CAD
$524.07 CAD - $524.07 CAD
$524.07 CAD

Vendu en lots de : 1

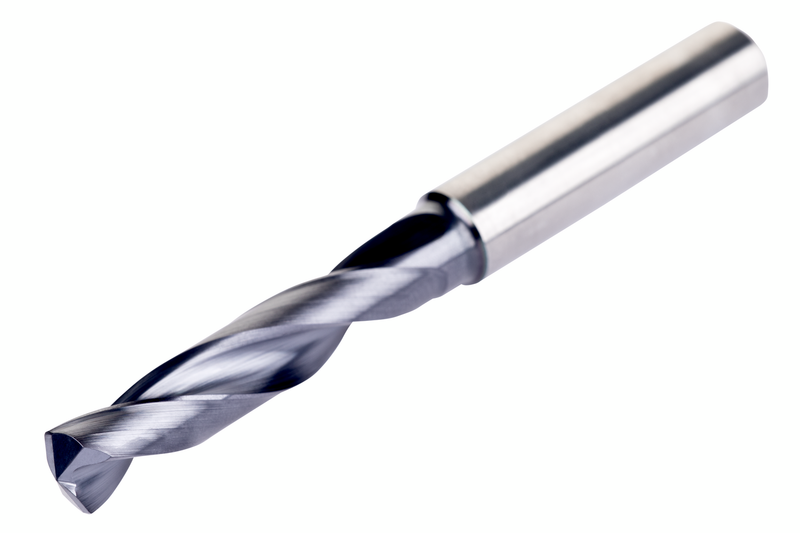

Le foret haute performance d'un diamètre de coupe de 19,5 mm est spécialement conçu pour offrir une qualité de trou supérieure à des vitesses et des avances élevées (tolérance de trou H9 pour les matériaux multiples). Une pointe fendue auto-centrante à 140° et 4 facettes et une construction de goujure CTW. DCON MS 20 mm, LCF 79 mm et OAL 131 mm. Le revêtement supérieur en TiAlN augmente la dureté de surface, améliore la résistance à l'usure et prolonge la durée de vie de l'outil.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)RS40319.5
GradeTiAlN/Sommet
Product Number8881660
Product FamilyRS403
Dimensions
Cutting Diameter — in (DC)0.7677"
Cutting Diameter — mm (DC)19.5 mm
Overall Length — in (OAL)5.1575"
Overall Length — mm (OAL)131.0 mm
Flute Length — in (LCF)3.1102"
Flute Length — mm (LCF)79.0 mm
Length × Diameter Ratio7xD
Connection Dia. — in (DCON)0.7874"
Connection Dia. — mm (DCON)20.0 mm
Drill Point Angle (SIG)140°
Tool Information
ShankQueue cylindrique DIN 6535 HA
Through Coolant No
StandardDIN 6537
Reference Numbers
EDP Number8881660
EAN3603607337547
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Utilisation possible
K — Cast Iron Usage principal
N — Non-Ferrous Metals Utilisation possible
S — High Temperature Alloys Usage possible
File Type Download
RS40319.5 — 3D Model STP Download
RS40319.5 — 2D Model DXF Download
RS40319.5 — Line Drawing PDF Download
